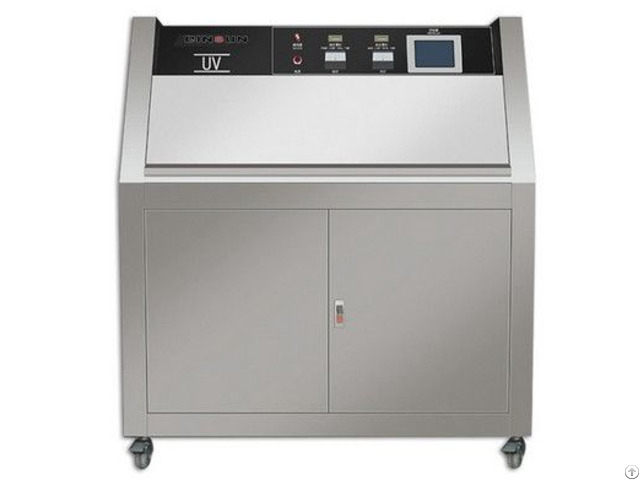

Customizable Qs E802 4 Uv Aging Test Chamber - China

Customizable QS-E802-4 UV Aging Test Chamber UV test chamber (also called uv aging test chamber or uv accelerated weathering tester) can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation and darkness in natural climate.

State-of-the-art uv test method: meet specifications

*Meet customer requirements* Stay ahead of government regulations Prevent field failures

* Improve quality and durability * Improve reputation * Guaranteed product performance gain a competitive advantage

* Save material costs * Expand product line * Enter new markets * Outperform competitors standard test

ISO 4892-3 ASTM G154 Features of UV Aging Test Chamber: Internal size: 1140W×650D×500Hmm

Outside dimension: 1340W×700D×1800Hmm

Box material.

SUS#304 stainless steel

temperature range.

RT～70℃

Temperature fluctuation: ±2℃

temperature control.

PID SSR control

Humidity range: -≥95%RH

controller.

Programmable controller, LCD touch screen

control mode.

Balanced Temperature Humidity Control (BTHC

Test cycle settings.

UV exposure, condensation and water spray test cycles are programmable

Lamp power: 40W/piece

The distance from the sample to the lamp.

50±2mm

The center distance of the lamp tube is 70mm

radioactivity.

0.45~0.8W/m2 (optional)

UV lamp: imported Atlas UV-A: 290-400nm (8 pieces, 1600h life).

Test time: 1~999s, m, h adjustable

Protection System.

Overload short circuit protection; over temperature protection; water shortage protection; leakage protection; automatic shutdown protection PS: (WLJCDM809)
