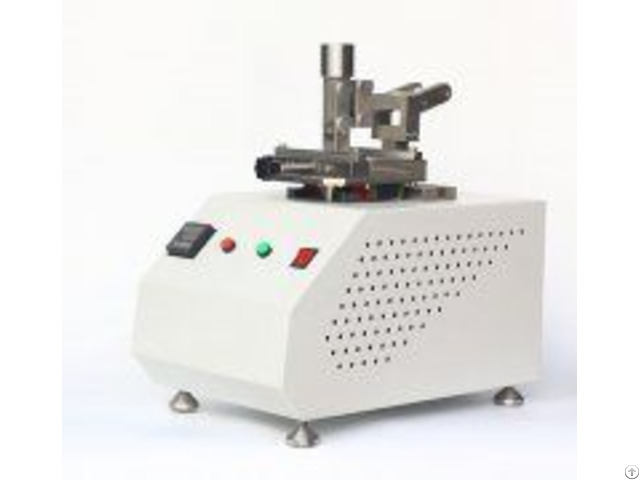

Taber Rotary Abraser Leather Abrasion Tester - China

Taber Rotary Abraser/Leather Abrasion Tester Taber Abrasion Tester/Leather Abrasion Tester is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastic, etc.

The test method is that the rotating sample bears a pair of wear wheels and applies a specified load.

When the sample rotates, it drives the wear wheels to wear the sample.

The weight loss of wear is the difference between the weight of the sample before and after the test.

The main technical parameters:

Compliant with standards: DIN-53754, 53799, 53109, TAPPI-T476, ASTM-D3884, I-S05470-1, GB/T5478-2008

Compliant with standards: din-53754, 53799, 53109, TAPI-T 476, ASTM-D 3884, I-S 05470-1, GB/T 5478-2008 1 - Test piece: inner diameter (D) 3mm

2 - Wear wheel: 2" (max 45mm) (W) 1/2"

3 - The distance between the centers of the wear wheel: 63.5mm4, the distance between the center of the wear wheel and the test plate: 37~38 mm

4 - The distance between the center of the wear wheel and the test disc: 37～38mm5, the track of the wear wheel: 3.5" outer diameter

6 - Rotation speed: 60/r/min or adjustable 7 - Load: 250, 500, 750

8 - Counter: LED 0～999, 9999, distance between test piece and vacuum port: 3mm

10 - Volume: 43×31×26cm + vacuum cleaner 11 - Weight: 18kg (excluding vacuum cleaner) 12 - Power supply: 1fAC 220V, 10A

One delivery toolbox (including one set of tools and three sets of weights) PS: (WLJCDM809)
