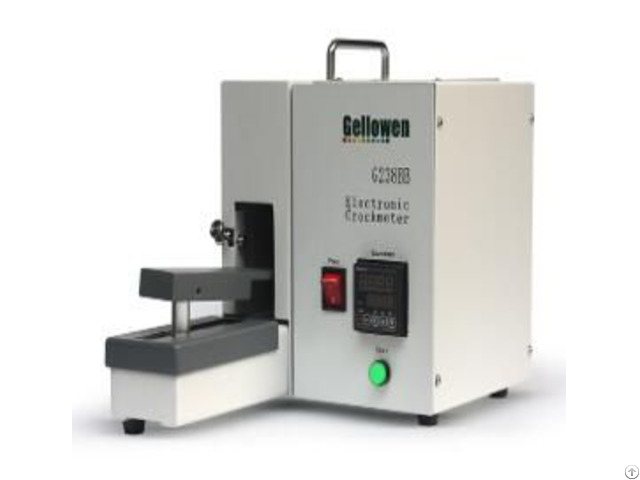

Aatcc Textile Fabric Electric Friction Color Fastness Tester - China

AATCC Textile Fabric Electric Friction Color Fastness Tester AATCC rubbing color fastness tester is the official testing instrument of American Textile Chemists Association and printing and dyeing workers.

The rubbing color fastness tester tests the ability of fabric color to transfer from the material surface to other materials under dry and wet rubbing conditions.

In addition to performing color transfer tests, the instrument can perform wear, dry/wet friction, flexure, chalking, dry cleaning, grinding, and other tests.

The standard pressure and movement mode are adopted to ensure that the sample conditions are controllable and repeatable.

Conforming to the standard: ASTM F1319, AATCC 8/165, BS 1006 DO2, GB/T 3920,, ISO105 DO2/X12, IS LO849, M&S C8/CBA, NEXT TM6 Instrument features: It is used for testing the color fastness of fabrics to dry and wet rubbing, and is suitable for regular or periodic testing.

A.

Diameter of friction head: 16mm or 25mm; B.

Supply pressure: 9N; C.

Electric drive, required working voltage 220V; D.

Equipped with an electronic counter, it can completely simulate the test results of ten times of manual friction, with high data reproducibility; E.

Fixture with standard friction fabric; F.

The sample clamp is made of spring steel to ensure fast fastening of the sample; G.

Equipment control mode: AATCC, ISO and other standards are set internally, and programs can also be set independently; H.

It has automatic alarm function after test.

10-10

ps: (WLJCDM809)
