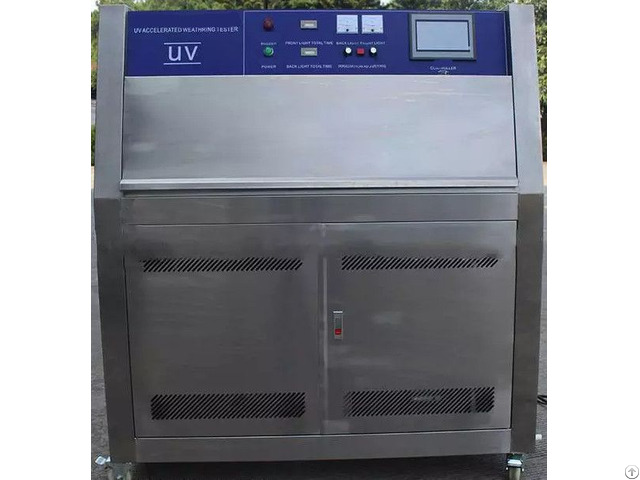

QUV UV Weathering Test Chamber/Ultraviolet Accelerated Aging Tester QUV's most widely used weathering tester in the world has become the world standard for laboratory accelerated weathering testing.

The UV aging test box adopts fluorescent UV lamps that can best simulate the UV spectrum in sunlight, and combines temperature control, humidity supply and other devices to simulate the discoloration, brightness, strength reduction, cracking, peeling, chalking, oxidation and other damage caused to the material.

Sunlight (UV segment) high temperature, high humidity, condensation, dark cycle and other factors.

Technical parameters of quv UV aging test chamber:

Model RUV-1

Control system Balanced temperature and humidity control system

Temperature range RT~70℃

Humidity range 20~98%R.

H

UV wavelength 280~400nm

The distance between the sample and the lamp tube is 50±2mm

The center distance of the lamp tube is 70mm

Peak energy 0.8~0.9W/m2

Exposure Mode Vapor condensation exposure, radiation exposure

Controller Japan original temperature controller, imported programmable time controller

Inner box size (cm) 1140x390x400 quv UV Aging Test Chamber Features:

1) The box body is processed and formed by CNC machine tools, with beautiful appearance, and the box cover is a two-way flip type, which is easy to operate.

2) The inner liner of the box is made of imported stainless steel, and the outer liner of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

3) The heating method is the inner tank water tank heating, the temperature rises quickly, and the temperature distribution is uniform.

4) The drainage system uses the vortex type and U-shaped sedimentation device to drain, which is convenient for users to clean.

PS: (WLJCDM809-W)
