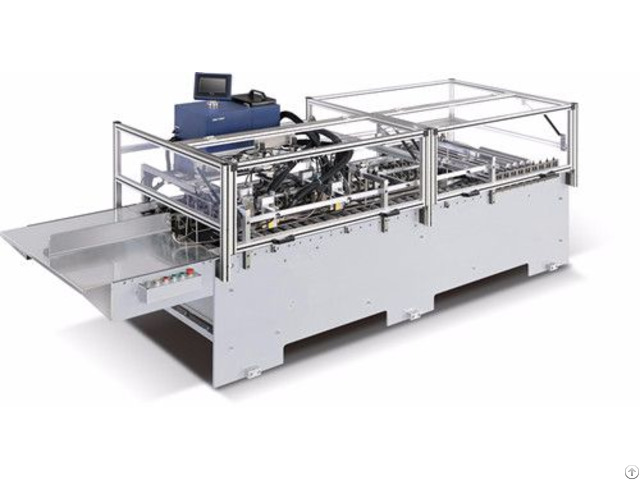

Bt 50b Handbag Bottom Pasting Machine - China

Major features

1 - This machine can greatly improve production efficiency, achieving objectives of streamlining staff, multiplying output, improving product quality and reducing costs for customers.

2 - This machine is fed with paper tubes with unsealed bottom and output paper bags with sealed bottom after processes of automatic feeding, automatic glue spraying, automatic bottom-gluing, automatic compacting, etc.

3 - Hot-melt glue system is equipped with four spray guns spraying glue automatically and evenly.

According to bag-making requirements, users can adjust the glue thickness and gluing position automatically, so as to prevent adhesive failure and glue leakage, so as to save glue and reduce costs.

4 - The action of forming is done pneumatically, being stable and accurate.

5 - This machine is designed to be user-friendly, with high-quality materials for its spare parts, high manufacturing precision, sound quality, easy adjustment and convenient maintenance.

6 - Its computer is controlled by PLC system, with variable frequency speed control and man-computer interaction for the operation interface, allowing easy operation and adjustment for operators.

7 - The display screen is 7-inch LCD from Taiwan.

Electrical components for the main low-voltage control part of the whole machine adopt imported ones with brands such as OMRON, TOSHIBA, SCHNEIDER, and German MOELLER.

The characteristics of the product

PLC control system, simple touch screen operation, and the thickness of the glue layer and the glue painting positions are adjustable and the spraying volume of the glue is even (save the glue volume and reduce the costs), and the efficiency is fast and the precision is high, and it can specifications etc.

The applicable paper materials

Brown paper, copperplate paper, white-plate paper, white paperboard and grey paperboard etc

(including laminting paper)

Melt information

Name

Information

用途 User

纸制品粘接Bag adhesive (spring bag adhesive)

成份 Composition：

合成树脂Synthetic Resin

固含量 Solid Content：

100%

毒性 Toxicity：

无毒 None

色度(加德纳颜色 )

4-6

颜色 Color：

黄色 yellow

软化点(环球法) R & B Softening Point：

约82℃

固化时间 Solid Time：

中速 Medium Speed

布氏粘度 Brookfield Viscosity：

160℃——约3150CPS

170℃——约2600CPS

产品形状 Form：

颗粒 Granular

推荐使用温度

Recommended Application Temp：

140-175℃

储存期 Store Life：

一年 One Year






Technology information：

TECHNOLOGY INFORMATION:

序 号

N O.

名 称

Configuration

型 号

Model

1

最高速度

Maximum speed

120pcs/min

2

风琴高度

Organ height

60～180 mm

3

胶水类型

Glue type

热熔胶

hot melt adhesive

4

总功率

Total power

3.5 kW

5

外型尺寸(长×宽� �高)

Overall dimensions (L× W ×H )

4800×1220×1320 mm

6

总重量

Total weight

1.5 t
