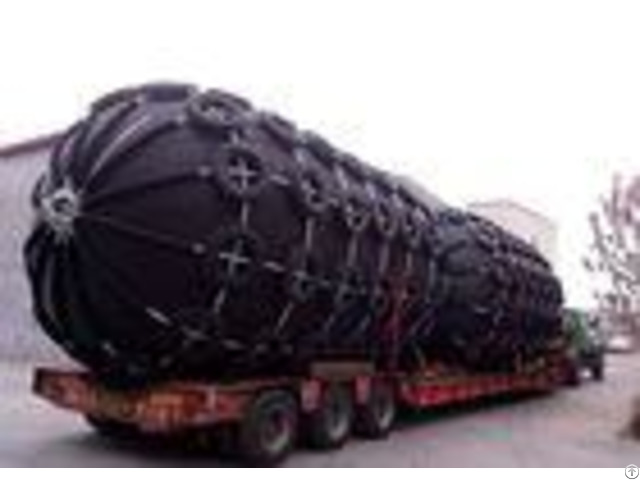

Ocean Platform Protection Marine Rubber Fender Initial Pressure 0 05 0 08mpa - China

Used For Dock And Ocean Platform Protection With Boat Fender Pneumatic Marine Rubber Fender In order to produce the qualified and famous China Brand of pneumatic fenders, ARD RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all ARD pneumatic fenders are manufactured comply with ISO17357: 2002 - Therefore, ARD-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.

Advantages of ARD marine rubber fender: * Long term service life * Not being bent out of shape under pressure * Produce according to ISO17357: 2002 completely * Many different sizes and shape available * Pass CCS, DNV, ABS * Optional tire and chain, can provide chain with hot galvanizing or stainless steel(304, 312, 316) * Optional end fittings for the better suitable of applications Technical performance of marinerubber fender - - - - Specification DXL(m) | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | Weight(kg) | Reaction force(KN) | GEA (KJ) | Weight (kg) | Reaction force(KN) | GEA (KJ) | 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 | 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 | 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 | 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 | 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 | 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 | 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 | 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 | 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 | 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 | 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 | 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 | 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 | 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 | 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 | 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 | 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 | 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 | 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 | 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 | Note: The weight is the fender body weight(without tires and chain), with weight error of 10% and counterforce error of 10% | - - - - All dimensions are approximate * Guaranteed energy absorption represents the guaranteed energy absorption at 60% deflection.

* Tolerance of reaction force and deflection at guaranteed energy absorption are as follows: Reaction 10% Deflection 10% * Each reaction and energy absorption are measured under static condition * Testing pressure rate indicates the testing pressure at factory * Weight of fender body and net may vary by 10%
