Wire Cut Interlocking Clay Brick Machine13000 18000 M H Production Capacity - China

price: check with company for price

Wire Cut Interlocking Clay Brick Machine13000 18000 M H Production Capacity

Products Photos Catalog Wire Cut Interlocking Photos Catalog

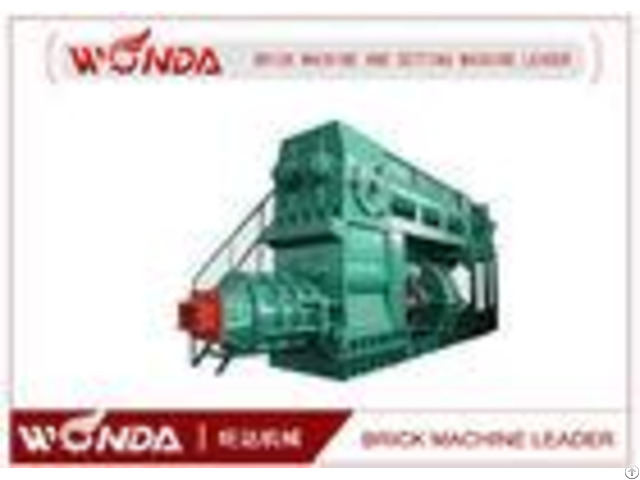

JZK 50 / 50 - 3.5 Vacuum Brick Extruder Auto Alloy Steel Perforated Clay Brick Making Machine ProductDescription Brick making machine is suitable for producing various solid and hollow brick such as gangue, shale, fly ash as well as clay.

1 - Twists the dragon to use the wear-resisting metal powder froth spray coating technology.

2 - Higher authority stirs the axis, to twist on the dragon macro-axis as well as the fuselage the lower part of the body and so on.

3 - The speed reducer gear is the hard tooth face; enhanced the useful life.

4 - This machine rational design, can reduce the equipment generating process large scale because of the vibration consumption power.

Basic Information - - - - Type | JZK50 | diameter of the cutter knife | 500mm | maximal extrusive pressure | 3.0Mpa | vacuum degree | <=92% | power | 55+132kw | overall shape | 5800*2054*2600 | capacity | 13000-18000m/h | Color | Any Color Is Ok | After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | - - - - Technical Parameter - - - - Model | Production (pcs/h) | Powder (kw) | SizeL*W*H (mm) | Forming moisture | Vacuum degree(Mpa) | Weight (kg) | JZK 60-4.0 | 15000-22000 | 90+200 | 8655*2450*2820 | 15%-18% | -0.092 | 22000 | JZK 55-4.0 | 14000-20000 | 75+180 | 8360*2800*3590 | 17%-19% | -0.092 | 20000 | JZK 50-3.5 | 13000-18000 | 55+132 | 3530*1800*2100 | 17%-19% | -0.092 | 16500 | JZK 45-3.0 | 10000-13000 | 110+132 | 4960*1680*1750 | 17%-19% | -0.092 | 11000 | JZK 40-3.0 | 8000-10000 | 90+110 | 4750*1500*1650 | 17%-19% | -0.092 | 8000 | JZK 35-2.0 | 6000-8000 | 55+75 | 3750*1340*1550 | 17%-19% | -0.092 | 6500 | JZK 30-2.0 | 4000-6000 | 45+55 | 2450*1220*1320 | 17%-19% | -0.092 | 3200 | - - - - FAQ 1 - How long can you guarantee your clay brick making machine / clay brick machine / brick making machine ? We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues.

After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.

2 - How to prove the strength of you company? Though we are medium-sized enterprises, we have accumulated nearly three decades of experience in production and sales, which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.

3 - What's your biggest advantage of the clay brick making machine / clay brick machine / brick making machine ? Obviously, it is professional and dedicated.

Product Show Finished Brick


Company Contact:


  • Phone: 86-371-64388011

  • Address: No.34,XiaoYi Road,GongYi City,HeNan,China, Gongyi , Henan , China

  • Email: Email


Published date: March 14, 2018

  • Business Description: Founded in1972 , Wangda Machinery factory was formerly known as telecom tool works which belongs to Post and Telegraph Department of the Fourth Engineering company .

    It locates in Gongyi City and only 600 meters away from railway station.
