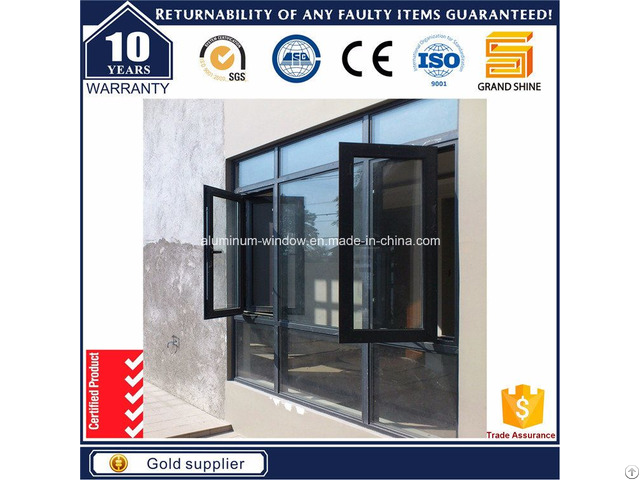

Outward Casement Window Grill Design 6789 Series - China

price: check with company for price

New Design Outward Casement Window Grill Design(6789 series)

We are an excellent and experience company in "one stop solution" for aluminum curtain wall, aluminum window, aluminum door, aluminum louvers, aluminum railings, glass wall ect. As a state-owned company, we have been established good and long term relationships with builders, developers and architects from all over the world.

Factory and Advanced Equipment:

1. Cover 400, 000 Over 1, 000 staffs and 20 production lines
2. Italy vertical powder coating line, daily output up to 60t-80t.
3. High accuracy mold, customized within 10 days.
4. 600t-2500t extruding machine, output up to 3, 000t/month.
5. The most advanced belt conveyor for better forming.
6. The most advanced NCN milling machine, accuracy up to 0.03mm.
7. Auto corner machine, daily output up to 500 sets.


Technical Data:
Items Aluminum casement window
Profile thickness 1.4mm
Frame width 50mm
Frame face width 49.8mm
Sash face width 46mm
Glazing options Type lOW-E/Reflective/Tempered/Floated/Coated
Single glazing 4/5/6/8/10/12/15/19mm etc
Double glazing Clear, Laminated, Low-E, Tempered
5mm+12A+5mm, 6mm+12A+6mm, 5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.
Aluminum color options Anodized black, Anodized light champagne, Wooden grain, Electrophoresis silver, powder coating white/grey, etc.
Glass color options Light grey, Light blue, Dark green, Dark blue, Light green, Clear glass, Bronze, Ford blue
Accessories Handle, Hinge, Ball lock, square lock
Rubber strip for sealing, System
Retaining Washer
Performance parameter 1.Wind pressure performance 5.0kpa GB/T7106-2008/9 Class
2.Air permeability 0.5m3/(h.m) GB/T7107-2008/8 Class
3.Rain water permeability 700Pa GB/T7108-2008/6 Class
4.Air noise performance 45dB GB/T8485-2008/6 Class
5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class
6.Shading performance of SC 0.2 GB/T2680-2008/7 Class




Packing information:
Material: Plastic film, Foam, Carton, Wooden box
20FT Door(1.8mx2.2m) Window(1.2mx1.2m)

90pcs 200pcs
40FT 200pcs 420pcs
40HQ 250pcs 530pcs


About GRANDSHINE:
1. We offer one-stop service: on-site measurement-design-install guidance-customer visit.
2. Over 100 projects worldwide represent the capability of GRAND SHINE.
3. As a state owned company, we have specialized in aluminum windows and doors for 20 years.

Our Serive:
1.Engineers provide you with the on-site measurement.
2.R&D center offer professional solution according to you needs.
3.We provide install guidance if needed.
4.High production efficiency guarantees delivery in time.
5.Anuy broken items can be replaced after sale.


Company Contact:


  • Phone: 86-20-38819128

  • Address: #351,TianHe Road,Guangzhou,China, GuangZhou, GuangDong, China

  • Email: Email


Published date: July 26, 2016 -

  • Business Description: Guangdong Grand Shine Construction Material Co., Ltd. was established by Guangdong Foreign Trade Company(a state-owned company) in 2005, enjoying financial support from the provincial government, centered in Tianhe District, Guangzhou. It is a member of Guangdong Guangxin Holdings Group Ltd(GuangXin Group). As a member of the Chinese-Top-500-Companies, Guangxin Group is now running 23 companies with around 25,000 members of staff, and acts as a shareholder of eight domestic and abroad Public Listed Company. Many famous brands in China come from this group, example includes: Pearl River Bright, Star Lake, Paco, Shengyi Technology, Xin Fa.Grandshine’s initial mission is to work on the abroad market for the group’s aluminum products including aluminum extrusion,aluminum coil and sheet,aluminum window and door,aluminum railing and fencing,etc.
