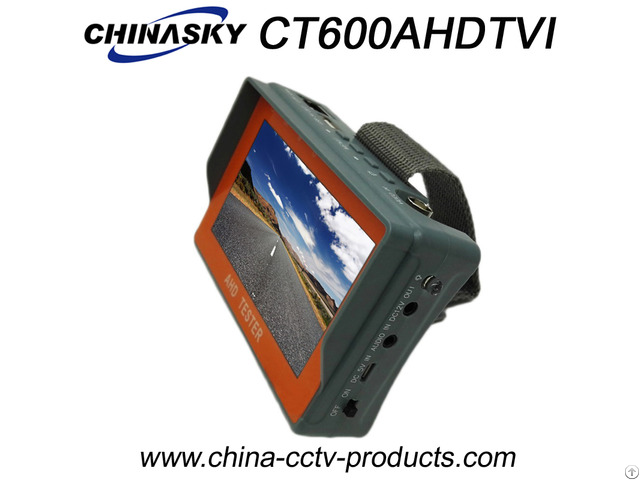

1080p Tft Color Lcd Cctv Tester For Ahd Tvi Analog Cameras Ct600ahdtvi - China

price: contact company for price

Description:

PAL/NTSC Auto Adapt for Analogue Cameras, AHD and TVI Cameras

Support AHD 1080P/960P/720P, TVI 1080P/720P and CVBS cameras,

Support 1ch Audio Test

Support UTP cable test

5VDC output for mobile phone

12VDC output for CCTV Camera

MINI USB Universal Charging Port

Low Power Consumption

Auto Sleep In 3 Minutes Without Signal

Rechargeable Li-ion battery 3.7v, 2600mAreplaceable.

Specifications:


Model


CT600AHDTVI


Video test


Video System


NTSC/PAL Automatically recognize


Video level


1VPP


Display screen


4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color


Screen adjustment


Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable


Video input / output


1 channel BNC Video IN




HD AHD, TVI Test


SD signal Format


NTSC , PAL


HD video signal


HD AHD, TVI


Resolution

AHD :720P, 960P, 1080P

TVI: 720P, 1080P




12V power output


Power output


Temporary power output 12V 1A DC





USBX1 5V1A output


Audio test


Audio test


Input audio signal, and played on the internal speaker


Power supply


External power supply


DC 5V(2A)


Battery-powered


Built-in 3.7V li-polymer battery, Capacity 2600mAh


Charge


Charge time 3-4 hours Battery power time 8 hours


Power saving features


Low power consumption, automatic power off, Real-time display of battery level


System settings


Language settings


Chinese, English user selectable


Auto power off


Disable / 5-60 minutes






Cable test


cable test


Test any two or more wire cable Display connect sequence and remote number


LED Light


1*35lm LED light







Working environment and Specifications


-20ºC---+70ºC


30%-90% Rh
