Conventional Fire Alarm Control Panel - China

price: 280.00 Dollar US$

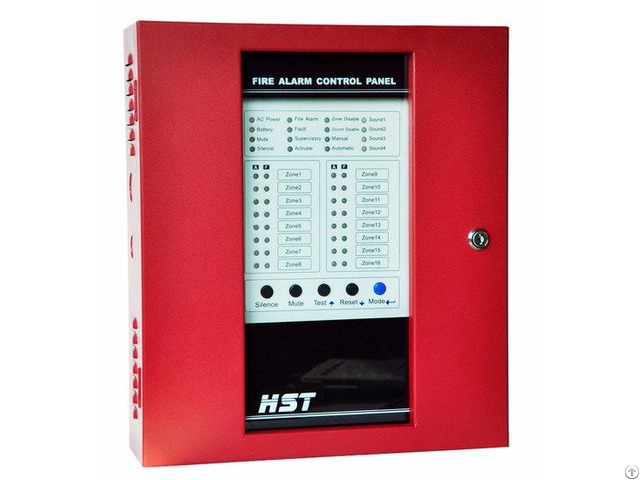

Conventional Fire Alarm Control Panel

Products Photos Catalog Conventional Fire Photos Catalog

This fire alarm control panel meets NFPA requirement.

It should be installed, commissioned and maintained by suitably qualified service personnel.

Description:

1 - It has 16 zones and 4 sounder outputs.

2 - It has 3 standard FORM-A relays contact for alarm, fault, supervisory.

And it has EIA-485 port for communication with remote delay and repeater panel.

3 - It works with conventional N/O contact input devices including 2 wire, 4 wire smoke detector, heat detector, gas detector and call points etc.

4 - It can be programmed by panel keypad.

It is supervised all wiring, AC voltage and battery level.

5 - It is required to be connected to power earth and it self checks earth fault.

6 - Max.

20 detectors can be equipped in one zone.

Each zone can be disabled separately.

7 - Output circuits:

24V resettable power output 1000mA

24V Nonresettable power output 1000mA

24V battery charger (up to 18AH battery)

8 - EIA-485 port (interfaces to Annunciators, Graphic Annunciators and Remote Relay module)

9 - 75VA power module is provided with the panel

10 - Sound 1-4 output can be manual activate directly or disabled.

11 - Panel running mode can be switched to manual or automatic.

12 - It reports short and broken circuit of zones.

13 - It is designed with space of 2 pcs sealed lead-acid backup battery.

14 - It is with Test and disable function.

15 - It can connect with Max.

32 repeater panels by RS485 port.


Company Contact:


  • Phone: +8659522725581

  • Address: Licheng district, Quanzhou , Fujian , China

  • Email: Email


Published date: July 5, 2017

  • Business Description: Internet shop professional grade fire alarm system and burglar alarm systems.

    Retail and wholesale home business security equipment wireless wired alarm device online.

    Get home security advice firstly.

    Learn security products secondly.

    Shop the most suitable and cost effective home security system then.

    Get help for installing the alarm systems all the way.
