Mdpe 3 Core Armoured Electrical Cable Stranded Copper Conductor Waterblock Semi - China

price: check with company for price

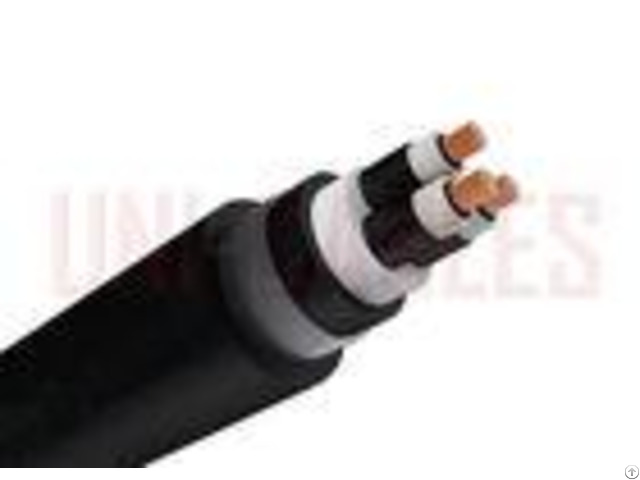

Mdpe 3 Core Armoured Electrical Cable Stranded Copper Conductor Waterblock Semi

Products Photos Catalog Mdpe Core Armoured Photos Catalog

BS 6622 Standard Armoured Electrical Cable XLPE MDPE 6.35/11 (12)kV Cable APPLICATION Power cables for power networks, underground and in cableducting.

CABLE STANDARDS BS 6622, BS EN/IEC 60228 CONSTRUCTION Conductor Class 2 stranded copper conductor Conductor Screen Semi-conductive XLPE (Cross-Linked Polyethylene) Insulation XLPE (Cross-Linked Polyethylene) Insulating Screen Semi-conducting XLPE(Cross-Linked Polyethylene) Separator Water blocking tape Insulation Screen Semi-conductive XLPE (Cross-Linked Polyethylene) Metallic Screen Individual copper wire screen Filler PET (Polyethylene Terephthalate) fibres Separator Binding tape Bedding PVC (Polyvinyl Chloride) SWA (Steel Wire Armoured) Sheath MDPE (Medium Density Polyethylene) DIMENSIONS - - - - UNI-Cables PART NO.

| SHEATH COLOUR | PADS NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA mm | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT kg/km | Under Armour mm | Over Armour mm | Overall mm | UNIMDPE11KV03185-BK | Black | 006/120036 | 3 | 185 | 64.4 | 69.4 | 76 | 12600 | UNIMDPE11KV03185-RD | Red | 006/120037 | 3 | 185 | 64.4 | 69.4 | 76 | 12600 | - - - - CONDUCTORS Class 2 Stranded Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA mm | MINIMUM NO.

OF WIRES IN CONDUCTOR | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | Circular | Circular Compacted | Shaped | Annealed Copper Conductor | Cu | Al | Cu | Al | Cu | Al | Plain Wires ohms/km | 185 | 37 | 37 | 30 | 30 | 30 | 30 | 0.0991 | - - - - ELECTRICAL CHARACTERISTICS Copper Conductor Dimensions and Current Carrying Capacity - - - - NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA mm | CONTINUOUS CURRENT RATING | In Ground Amps | In Ducts Amps | In Air Amps | Trefoil | Flat | Trefoil | Flat | Trefoil | Flat | 3 | 185 | 430 | 430 | 370 | 370 | 490 | 490 | - - - -


Company Contact:


  • Phone: 86-27-82757025

  • Address: Room B813,No.61, Yejin Avenue, Qingshan District,Wuhan City, Hubei Province, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 20, 2018

  • Business Description: UNI-CABLES, Brand owned by a group company of WUMEE, which now has four factories in China.

    Wuhan Unique Electric Wire and Cable Co., Ltd, Guangdong Unique Cable Co., Ltd, Guangxi Unique Aluminum Co., Ltd, Wuhan Unique No.

    2 Factory.
