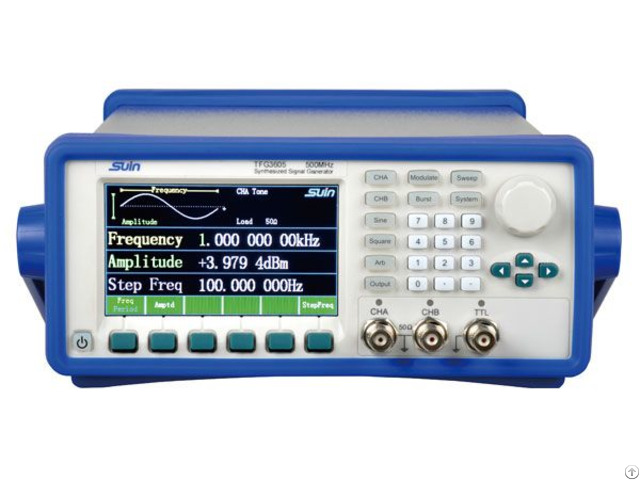

Function Generators 3600 - China

Function Generators FEATURES

Combine with DDS and PLL techniques

1500MHz Maximum Frequency

1ppm High Accuracy, Less Distortion

Dual Independent Outputs

AM, FM, FSK, PSK Modulation

User can set accurate pulse width, burst signal as numbers

USB Device, RS-232 SPECIFICATIONS

CHA TFG3605 TFG3615 TFG3610

Frequency

Range Sine 1μHz ~ 500MHz 1μHz ~ 1500MHz 1μHz ~ 1000MHz Square 1μHz ~ 80MHz

Resolution 1μHz (carrier frequency≤80MHz) 1Hz (carrier frequencyundefined80MHz)

Accuracy ±1ppm, Frequency≥1.0kHz ±50ppm, Frequency＜1.0kHz

Sine Output Level

Range Freq≤500MHz -127dBm ~ +13dBm(-127dBm ~ -117dBm typical) Freq≤1000MHz -110dBm ~ +13dBm(-100dBm ~ -110dBm typical) Freq≤1500MHz -105Bm ~ +10dBm(-100dBm ~ -105dBm typical)

Resolution 0.1dB

Accuracy Freq≤300MHz setting ±1dBm (output level +13dBm~-105dBm) Freq≤1500MHz setting ±1.5dBm (output level +13dBm~-80dBm) setting ±2.5dBm (output level -80dBm~-100dBm)

Stationary Wave Ratio (SWR) < 1.8

Sine Spectrum Purity

Harmonic < -33dBc (output level≤4dBm, typical value)

Non-Harmonic < -40dBc (output level≤4dBm, deviation CF≤5kHz)

Sub-Harmonic < -40dBc (output level≤4dBm)

Remain Modulating Frequency < 100Hz(BW: 0.3 ~ 3kHz, RMS undefined 120MHz)

Square

Rise/Fall Edge Time ≤15ns

Overshoot ≤5%

Modulation

Type AM, FM, FSK, PSK

External Modulation Input Voltage Range: ± 2.5V, Frequency: DC to 10kHz

Frequency Sweep

Sweep Rate 1ms ~ 800s Linear (carrier ≤80MHz) 100ms ~ 800s Logrithm(carrier ≤80MHz)

Step Time 50ms ~ 10s Linear (carrierundefined80MHz)

Burst

Burst Count 1 to 10000 cycles

Interval 0.1ms to 800s

CHB

Frequency

Range 1μHz ~ 10MHz

Resolution 1μHz

Accuracy ±1ppm, Frequency≤1.0kHz ±50ppm, Frequency＜1.0kHz

Waveform

Type Sine, Square, Ramp, Pulse, Sinc, Exp, Noise, DC

Square Edge Time ≤50ns Duty Cycle 0.01% ~ 99.99%

Pulse Edge Time ≤50ns Pulse Width 20ns ~ 20s

Ramp Symmetry 0.0% ~ 100.0%

Output

Amplitude 1mVpp to 10Vpp(50Ω), 2mVpp to 20Vpp(High Z)

Offset ±5Vpk ac+dc(50Ω), ±10Vpk ac+dc(High Z)

Resolution 5mVpp

Accuracy ±(1% of setting + 10mVpp)

Flatness ± 0.5dB

General Characteristics

Power AC100V~240V, 50(1±10%)Hz, undefined40VA

Dimension & Weight 254×103×374 mm, 4.2 kg
