Black Color Solar Pump Station Sr881 - China

price: check with company for price

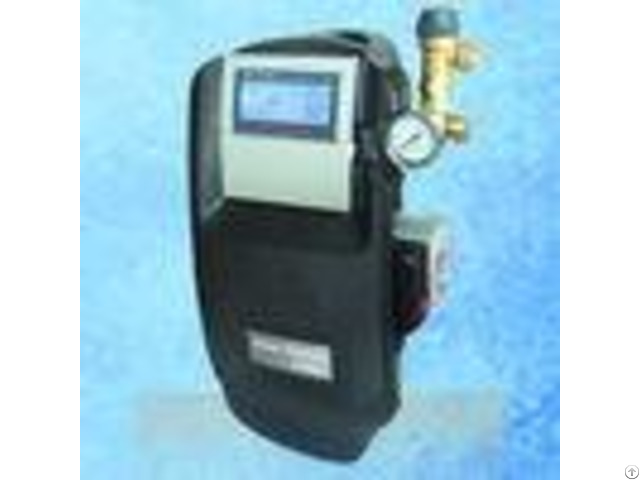

Black Color Solar Pump Station Sr881

Products Photos Catalog Black Solar Pump Photos Catalog

Solar Pump Station SR881 for Split Solar Water Heater System including Controller and Pump Specification Max.

number of collectors: 1 Max.

number of storage tanks: 1 Max.

number of relays: 2 Max.

number of sensors: 3 Max.

number of application system: 1 Technical data: Diamension: 400mm*200mm*14 5mm Installation: wall mountingalso suitable for mounting into patch panels Power supply: 200V-240V AC or 100V-130V AC50-60Hz.

.

Power consumption: < 3W Accuracy of temperature measuring: 2oC Range of collector temperature measuring: -10 ~200oC Range of tank temperature measuring: 0 ~110oC Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .

Inputs: 3 sensors Pt1000 sensor (500oC) for collector (silicon cable280oC) NTC10K B3950 sensor ( 135oC) for tank (PVC cable 105oC) Outputs: 2 relays for circulation pumps or 3-way electromagnetic valve Ambient temperature: -10oC ~ 50oC.

Water proof grade: IP40 - FUNCTIONS: Timing heating Temperature difference control 1*T Collector emergency shutdown Collector cooling function Collector low temperature protection Collector frost protection Tank re-cooling function Celsius and Fahrenheit temperature switch Maximum temperature of tank(max.

number 1) Anti-Legionella function Temperature controlled hot water circulation pump RPM speed controlling(1*semiconduct or) Thermal energy measuring Pump interval functions.

High temperature by-pass function Manual Control( for 2 outputs: P1H1) Password setting Recovery to factory setting Holiday fucntion Manual Heating Temperature query function Memory Protection Screen protection Trouble shooting Trouble protection Trouble checking


Company Contact:


  • Phone: 86-135-11388384

  • Address: YUANHUA, HAINING, ZHEJIANG, CHINA, HAINING , ZHEJIANG , China

  • Email: Email


Published date: April 19, 2018

  • Business Description: JIAXING PASSION NEW ENERGY TECHNOLOGY CO., LTD. is a manufacturer of Solar Water Heater since 1996.

    As an experienced company, we can provide the perfect solution for Solar Thermal System.

    Our products include solar water heater, solar collector and accessories.
