Seismic Cables 408ul - China

price: 3.00 Dollar US$

Seismic Cables 408ul

Products Photos Catalog Seismic Cables 408ul Photos Catalog

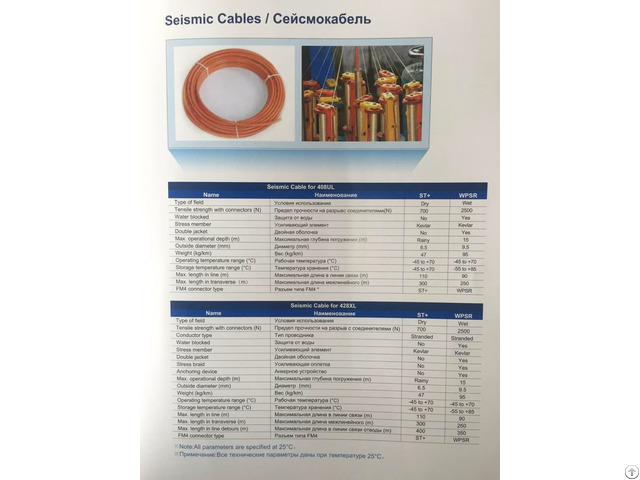

Seismic Cable for 408UL

Name ST+ WPSR

Type of field Dry Wet

Tensile strength

with connectors(N) 700 2500

Water blocked No Yes

Stress member Kevlar Kevlar

Double jacket No Yes

Max.

operational Rainy 15

Depth(m)

Outside diameter 6.5 9.5

(mm)

Weight(kg/km) 47 95

Operating -45to+70 45to+70

temperature rang

Storage -45to+70 45to+70

temperature rang

Max.

length in 110 90

line(m)

Max.

length in 300 250

transverse(m)

FM4 connector ST+ WPSR

Type

Note: All parameter are specified at 25℃.


Company Contact:


  • Phone: 86-10-87576701

  • Address: Rm1205, 3rd Building, Soubao International Centre,No.16 Nansanhuanxi Rd, Fengtai District ,Beijing, , beijing , china , China

  • Email: Email


Published date: August 12, 2016 - Modified date: August 12, 2016

  • Business Description: Capacity：

    Based on dust free geophone element workshop and geophone string assembly line, ZF can manufacture 2.5 million geophone elements and 0.1 million typical geophone strings per year, while more that 1.09 million seismic connectors and other spare parts are manufactured by ZF every year.

    ZF cable department mainly produces geophone cables, seismic cables and custom cables, with a capacity up to 37, 000 KM of typical digital cables and leader wires per year.
