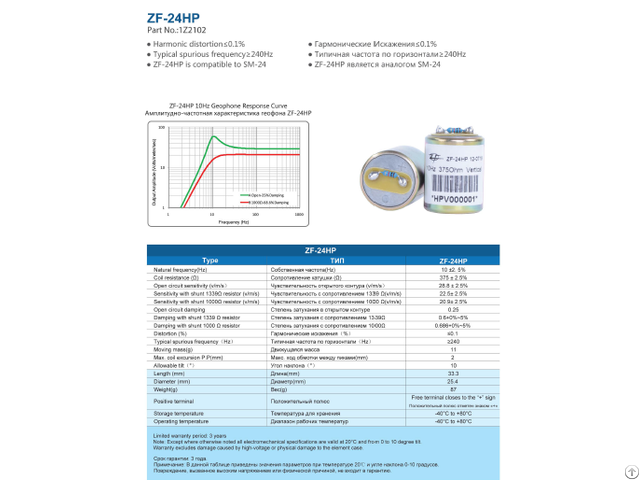

  • Geophone Zf 24hp Part No 1z2102 - China

    price: 15.00 Dollar US$

    Harmonic distortion≤0.1%

    Typical spurious frequency≥240Hz

    ZF-24HP is compatibile to SM-24

    Type:

    Natural frequency 10±2.5%

    Coil resistance 375±2.5%

    Open circuit sensitivity(v/m/s) 28.8±2.5%

    Sensitvity with shunt 1339Ωresistor((v/m/s)


    22.5±2.5%

    Sensitvity with shunt 1000Ωresistor

    20.9±2.5%

    Open circuit damping 0.25

    Damping with shunt 1399Ωresistor

    0.6±0%~5%

    Damping with shunt 1000Ωresistor

    0.686+0%~5%

    Distortion (%)≤0.1

    Typical spurious frequency(Hz) ≥240

    Moiving mass(g) 11

    Max.

    coil excursion P.

    P(mm) 2

    Allowable tilt(°) 10

    Length(mm) 33.3

    Diameter(mm)25.4

    Weight(g) 87

    Positive terminal

    Free termial closes to the “+”sign

    Storage temperature(°C) -40to+80

    Operating temperature(°C)-40to80

    Limited warrantly period :3years

    Note:Except where othervise noted all elctromechanical specification are valid at 25(°C)and from 0to 10 degree tilt.

    Warrantly excludes damage caused by high-voltage or physical damage to the element case.


    Company Contact:


    • Phone: 86-10-87576701

    • Address: Rm1205, 3rd Building, Soubao International Centre,No.16 Nansanhuanxi Rd, Fengtai District ,Beijing, , beijing , china , China

    • Email: Email


    Published date: August 11, 2016 - Modified date: August 12, 2016

    • Business Description: Capacity:

      Based on dust free geophone element workshop and geophone string assembly line, ZF can manufacture 2.5 million geophone elements and 0.1 million typical geophone strings per year, while more that 1.09 million seismic connectors and other spare parts are manufactured by ZF every year.

      ZF cable department mainly produces geophone cables, seismic cables and custom cables, with a capacity up to 37, 000 KM of typical digital cables and leader wires per year.
