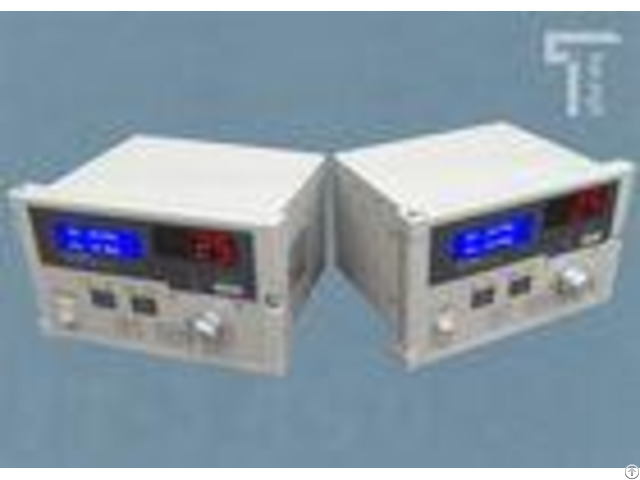

Dc 24 V Single Reel Digital Tension Controller For Printing Coating Machine - China

LCD Screen Control Auto Tension Controller For Printing Coating Machine Notes for connection: Under semi-auto calculation working mode, MC0 terminal do not connect main reel proximity switch pulse, but connect coil diameter reset button.

Under semi-auto calculation working mode, MC1 start/stop control switch can do not connect 1 - To avoid electrical nosies to input signal of tension detector and proximity switch, the signal cables should be placed away from othe cables.

No parallel placement or banding od the two is allowed.

2 - Guarantee the connection between shielding cable of tension detector and "PE" terminal of controller, connection between "E" terminal of controller's 220AC power supply plug and controller's "PE" terminal, connection between "E" jack od the outlet and the "earth".

3 - Power off for installation and wiring of the controller.

Once the 220V AC power cable is in place, absolutely no hands and metal objects touch to L and N terminal.

Tighten up the connection to terminal L and N to prevent loosing.

- - - - Tension parameter | C02 | Full Setval | 0.1~200.0kg | 30.0kg | Limit tension max setting value | C03 | Max output | 0.00~100% | 100% | Limit voltage max output value | C04 | Min output | 0.00~100% | 0.00% | LImit voltage min output value | Diamater measuring parameter | C05 | Rat.

Torque | 1~2000NM | 100NM | Rated torque of brake/clutch | C06 | Dia.

D0 | 11000mm | 60mm | main reel diamter | C07 | Pulse No.

| 0.1~100.0 | 1 | Main shaft gear teeth No.

| C08 | Pulse N1 | 0.1~100.0 | 1 | Working shaft gear teeth No.

| C18 | Smoothness | 1-200 | 3 | Diameter smoothness, diameter bigger and more smoothness, but feedback slow | C19 | Counter Num | 1-200 | 1 | Machine running slow, setting value small, running fast then setting value big | C26 | Init Dia | Dmin~Dmax | 95mm | initial dimater of coil | C27 | Thickness | 1~3000um | 20um | Thickness of material | C28 | Wind mode | remind/unwind | remind | remind/unwind setting | C29 | Taper start | Dmin~Dmax | Dmin | Diameter start line of taper tension control | C30 | Taper End | Dmin~Dmax | Dmax | Diameter stop line of taper tension control | C31 | Taper Tp | 0.0~100.0% | 0.00% | taper tension control, affect slope tension | C32 | Min Dia | 1~2000mm | 95mm | Minimum diameter of coil | C33 | Max Dia | 1~3000mm | 1000mm | Maxmun diameter of coil | .

Additional function parameters | C09 | Language | English | English | Language select | C10 | Unit choose | KG/N | KG | Tension parameter display | C20 | Empty Alarm | Dmin~Dmax | 95mm | coil material Empty alarm | C21 | Full Alarm | Dmin~Dmax | 1000mm | coil material Full alarm | C22 | Lock Time | 0~300s | 0s | lock function | C23 | Data backup | Regain-backup | | back and regain parameters | C24 | Fac.

Default | Regain-maintain | | regain type current setting value lose | C25 | Weak E.

Set | 0~50% | 0% | off output mode | C34 | SA V.

Level | 0~10V, 05V | 0~10V | SA output voltage select | C35 | Para Custom | open/close | close | | - - - - Packing and delivery 1 - Neutral carton packing 2 - One piece in one carton box 3 - Normally one controller with two loadcells, this is easy for shipping.

4 - One unit shipping 5 - Lead time: within 3 days FAQ 1 - How can you contact us? Pls contact us by email, Skype, Whatsapp.

2 - How can you place the order from us? You can let us know your detail request, we can design the best solution for you;and if you have your detail engineer drawing, pls dont hesitate to send us.

3 - What is the MOQ in our company? As for most of products, we dont have MOQ.

4 - What is your delivery time of the products? For air shaft and other customized products need time to manufacture, the delivery time is about 7~15days;For Magnetic powder brake/clutch, Air disc brake/clutch, tension control systemetc, we have stock in factory, the delivery time is 3~5days.

5 - What is your trade term? Usually we accept trade by EXW, FOB, CIFetc, you can choose the best way you would like.
