V Shaped Profile Johnson Well Screen Pipe Square Support Rod For Diatomite Filtration - China

price: check with company for price

V Shaped Profile Johnson Well Screen Pipe Square Support Rod For Diatomite Filtration

Products Photos Catalog Shaped Profile Johnson Photos Catalog

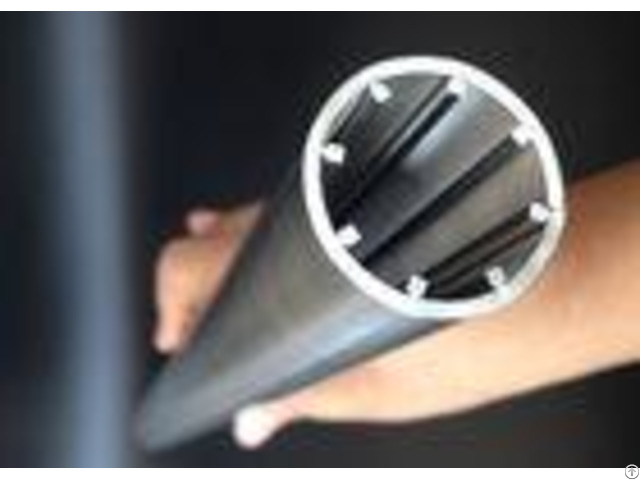

V Shaped Profile Johnson Well Screen Pipe SquareSupport RodFor Diatomite Filtration Item Code: OD33FOTI0.075MM Basic Info # Model NO: OD33FOTI0.075MM # Min Diameter: 33mm # Length: 2500mm at Longest # Filter Direction: Fito / Foti # Material Details: 304 Stainless Steel # Material Shape: Wedge Wire, Triangle # Support Rod: Square # Profile Wire: 10sr/12sr/18sr # Brand Name: SLOT-CHINA # Export Markets: Global Product Description 33mm Diameter V Shaped Profile Wedge Wire Screen Diatomite Filtration Vee Wire Wrapped Screen In Beer Processing .

The screen is made of a kind of Wedge wire which is popularly used in beverage filtration.

The wedge wire screen is made up of supporting rods and wire screening strips.

The supporting rod can be round wire, trapezoid wire or triangular wire.

More available Sizes: Diameter: 1" to 10".

Slot openings: From 0.02mm up.

Lengths: Max to 2.5 meters.

End: Welding-ring or threaded ends.

- - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - Advantages: 1 - Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.

2 - Low cost operation.

3 - Reduce the abrasion of the pump.

4 - Extend the life span of wells, low-carbon, Galvanized or stainless steel construction Delivery By Courier: 4-7 Working days by special offer By Air: 15 Working days at appointed airport By Sea: 30-35 Working days at appointed port Why choose us 1 - We are manufacture.

2 - We have advanced proccessing machine.

3 - We can make slot screen tube perfect round 4 - We can do the slot 0.02mm minimumly.

5 - Professional sales team can give you feedback within 24 hours.


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
