High Performance Wire Wrapped Screen For Water Well Industry 0 1mm Filtering Slot - China

price: check with company for price

High Performance Wire Wrapped Screen For Water Well Industry 0 1mm Filtering Slot

Products Photos Catalog Performance Wire Photos Catalog

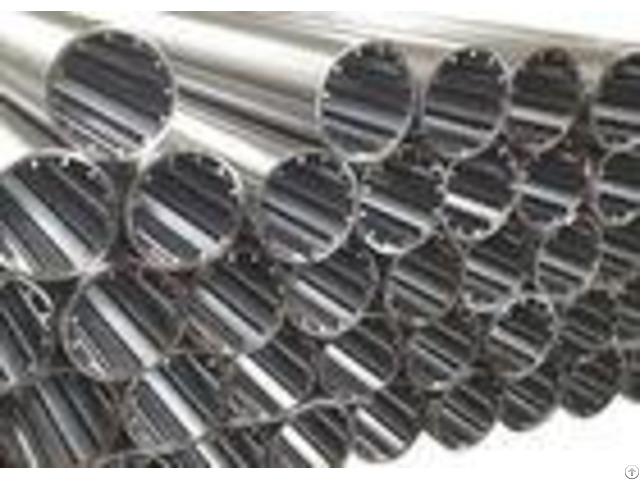

High Performance Wire Wrapped Screen for Water Well Industry 0.1mm Filtering Slot Item Code: OD60FOTI0.1MM Brief Introduction High Performance Wire Wrapped Screen for water well industry 0.1mm filtering slot is stainless steell filtering screen which are made of v shape stainless steel wire.

The v shape SS wire loopon the support rods withstrong welding on every points to make the wire Wrapped screen.

The material is 304SS.

And the filtering slot is 0.1mm, 100 m.

Description Wirewrappedscreeniswidely usedinoil, gas, waterandsandcontrolindust ry, itspositioninthewaterwell industryisparticularlyimp ortant, isoneofthemostwidelyusedi nvariouswaterfilterscreen .

Thisproductismainlybodyj oints, wrist, wirewindingtubeandaninner tube.

Liquidflowisfromtheo utsidetotheinside, throughthewirewindingtube gapfilterviatheinnertubeh olesintothewirewrappedscr eencavity.

Becausethescree nsectionistrapezoidal, thegapisalwaysoutsidesmal landinsidelarge, veryfavorablefiltrationan dwashing.

Wirewrappedscree nlengthandfilteringaccura cycanbecustomizedaccordin gto requirements.

Besides, Vtype, wedgetypeandothertypesare available.

- - - - Place of Origin: | Zhejiang, China | Brand Name: | SLOT-CHINA | Model Number: | OD60FOTI0.1MM | Usage: | Liquid Filter | Type: | Filter Elements | Material: | STAINLESS STEEL | Hole Shape: | V Slot | Filter Rating: | 0.1mm | Thickness: | 2mm | Length: | < 2500mm | Width: | DIA25.4mm--250mm | MATERIAL: | 304 | PROFILE WIRE: | 10SR/12SR/18SR | WIRE SHAPE: | WEDGE | SUPPORT WIRE: | Q22/Q25 | SUPPORT WIRE SHAPE: | Square | FILTER DIRECTION: | FOTI | SCREEN SHAPE: | TUBE/ PIPE | DIA RANGE: | 25.4mm --250mm | LENGTH RANGE: | <2500mm | | | - - - - Material of Wire Wrapped Screen: Des For the end cap welding and everage slot Applications of wire wrapped screen # Separating; # Sizing # Straining; # De-watering; # Filtering; # Drying; # Water intake; # Media retention Open area rate : 9%, The Way To Calculate OpenArea(%)=SlotSize / (Slotsize+Wirewidth) Our advantage: 1 - We are manufacture.

2 - We have advanced proccessing machine.

3 - We can make slot screen tube perfect round 4 - We can do the slot 0.02mm minimumly.

5 - Professional sales team can give you feedback within 24 hours.


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
