Veterinary Endoscope Borescope - Taiwan

INSTRUCTION

The Lizard-100 series are compact portable borescopes that allow users to execute inspection in restricted spaces which could not be directly observed with naked eyes.

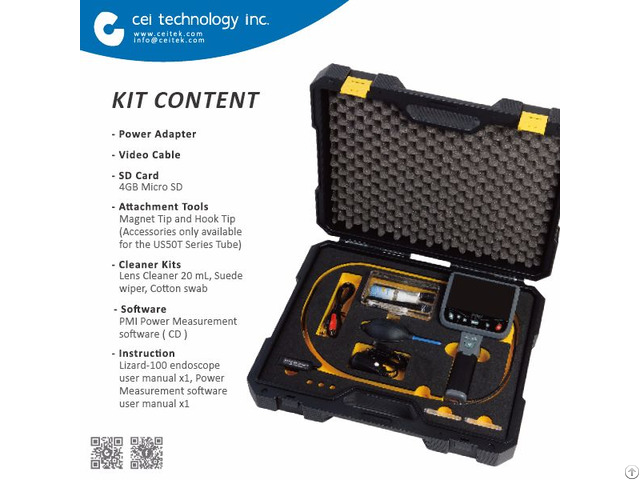

The PMI Lizard-100 series set includes a portable device, a camera tube, a cleaning kit, a power adapter, a video connector, and a 4GB SD card.

The portable device with 4.8” TFT LCD screen is capable of viewing, capturing and reviewing photos and video images.

Images can also be displayed directly on a TV screen.

The portable device is powered by rechargeable Li-Ion battery and a universal charger is included.

FEATURES

Super wider angle camera

Digital signal with high resolution, VGA (640 x 480 pixels)

4.8" Wider screen

Quick snap/ Video recoding

Special design marked scale on probe to measuring

Waterproof & Grease proofing

Comfortable TPR handle

Image editor software

SPECIFICATION

Designation Lizard-100

Display 4.8" TFT LCD, 800 x 400 Pixels

Display Strength Tempered Glass

Interface

Micro USB 2.0 / AV out

Battery

Rechargeable Lithium Battery (3.7V)

Power adapter

100~240V AC in, 50/60Hz 0.12 A

5.0V DC out, 0.85A ~ 1A

Recording Medium Free 4G SD card

Photo Storage Format JPEG (640 x 480)

Storage Capacity Up to 20, 000 pictures or 480 min.

of video on 4 GB card

Video Recording Format AVI (640 x 480)

Video Out Format NTSC & PAL

Frame rate 30 fps

Compression Format MPEG4

Video size 10 min.

(150 MB)

Working& Storage/ Battery charging temperature range -10 ~ 65 °C (14 ~ 149 °F)

Functions Snapshot, Video recording, Images (Photo & video) review on LCD screen, TV out, Transfer of photo & video from SD card to PC, Digital zoom

Magnifier 3 x

Battery Life 3 hours

Ingress Protection IP 54

Camera tubes

Designation US40 Series Us45 Series US50T Series UH50T Series

Tube type Semi-Rigid Hose

Tube Surface Treatment EPD /PE Cover PVC Cover

Image sensor CMOS Image Sensor

Resolution VGA (640 x 480 pixels)

Light Source 6 adjustable white LED s

Size tip diameter 4.0 mm 4.5 mm 5.0 mm

Tube length 1m, 2m, 3m 5m

Field of View (FOV) 80 °

Depth of Field (DOF) 1 cm ~ 10 cm

Resistant to water & fuels Yes (For most fuels and solvents)

Min bending radius 50 mm

Working temperature range -10 ~ 65 °C (14 ~ 149 ° F)

Ingress Protection IP 67
