Steel Profile Roofing Corrugated Sheet Roll Forming Machine 0 3 0 8mm Thickness - China
price: check with company for price

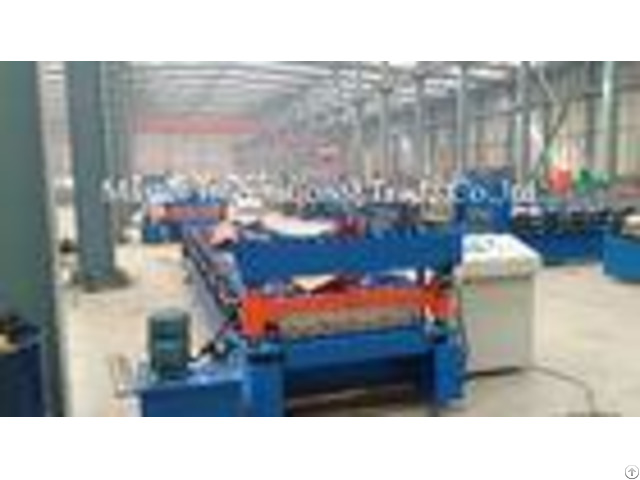

Steel Profile Roofing Corrugated Sheet Roll Forming Machine 0.3 - 0.8mm Thickness Description: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Flow chart Standard Equipment of Machine: - - - -
Uncoiler | 1 set | Guiding Equipment | 1 set | Roll Forming Equipment | 1 set | Post Cut Equipment | 1 set | Hydraulic Station | 1 pc | PLC Control | 1 pc | Supporter Table | 2 pc | - - - - The Technical Parameters: - - - -
Suitable raw material | Color steel sheet; Galvanized steel sheet | Thickness of the material | 0.3m to 0.8mm | Yield strength of material | 235Mpa | Uncoiler' s loading capacity | Max.
Capacity: 5000Kgs.
(can be increased to be 10 tons) | Forming speed | About 10-15m/min | Main motor power | 5.5Kw(Depend on final design) | Hydraulic station power | 4Kw(Depend on final design) | Controling System | Mitsubishi PLC & converter | Votage | 380V, 3 phase 60Hz or according to at buyer' s requirment | Quantity of the roller group | At least 16groups(depend on final design) | Machine dimension | About 8.5m*1.3m*1.3m(depend on final design) | Total weight | About 5000kgs(depend on final design) | - - - - CompetitiveAdvantage: 1 - savespace 2 - easyinstallation 3 - best after-sale service 4 - excellentquality 5 - Operateeasily Welcome to make order Whatsapp number: 008615133711731
Company Contact:
- Posted By: ZhongHeng Machine Manufacture Co.,limited
- Phone: 86-317-33711731
- Address: Shengli Road Cangzhou Hebei province China, Cangzhou , Hebei , China
- Email:
Published date: April 10, 2018
- Business Description: Master international trade Co., ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines, material of building.
