Gz05b Automatic 2 Color Toothpaste Filling And Sealing Machine - China

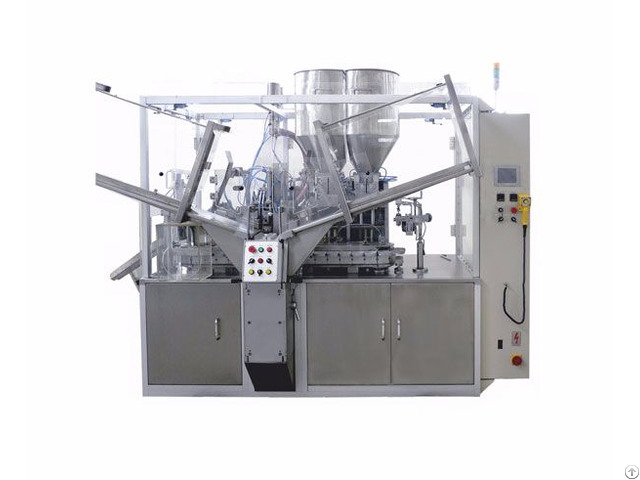

GZ05B Automatic 2-color Toothpaste Filling and Sealing Machine Toothpaste Line

GZ05B is a new type of color striped toothpaste filling and sealing machine developed from GZ05 automatic filling and sealing machine.

The toothpaste machine has the international patent.

It is suitable for filling and sealing composite or plastic tubes with semi liquid products.

It adopts inner hot air mechanism for the adhesion and sealing of tubes.

Main technical parameters:

A.

Tube diameter range: φ13mm-φ40mm

B.

Tube length range: 60mm-200mm

C.

Production speed: <120tubes/min

D.

Motor power: 3.7KW

E.

Dimensions: 3150*1560*2270mm

F.

Net weight: 3820 KG

G.

Sealing form: hot air

H.

Electricity: 380V/50Hz

I.

Compressed air pressure: 6 bar

J.

Cooling water pressure: 1.5 bar

K.

Location accuracy: ±1.5mm

L.

Filling accuracy: ±0.5 g

M.

Working form: double pumps, synchronous belt
