Auto Parts Hanger Shot Blasting Machine Increase Roughness - China

price: contact company for price

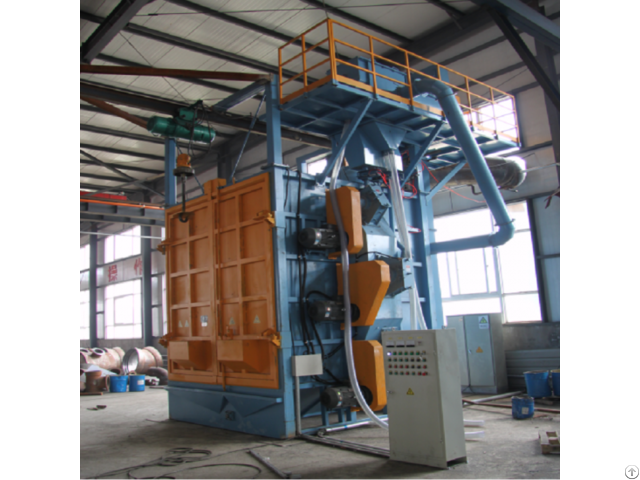

Auto Parts Hanger Shot Blasting Machine Increase Roughness

Products Photos Catalog Auto Hanger Shot Photos Catalog

Auto Parts Hanger Shot Blasting Machine Manufacturer JX Offers Auto Parts Hanger Shot Blasting Machine, Increase Roughness, Raise Fatigue Strength.

Description

Auto Parts Hanger Shot Blasting Machines, Hook Capacity - 100kg, 200kg, 300kg & 500kg (single/double door), is designed to handle mix load of medium & large components including fragile & irregular shapes.

Small components can also be cleaned by loading into carrier basket.

Various work handing schemes like straight, tee, y and continuous loop is possible.

Machine can handle load upto 5000 kg/hanger or more.

Application

Auto Parts Hanger Shot Blasting Machines are suitable for any type of castings, forgings and fabricated components for increasing roughness of surface and shot peening to raise fatigue strength.

1 - Main blast cabinet with inspection door

2 - Blast wheel units with drive mechanism.

3 - Abrasive circulation unit

4 - Bucket elevator unit

5 - Abrasive separation/cleaning system with storage hopper

6 - Dust collector with cleaning mechanism.

7 - Roller conveyor system at inlet & outlet side.

8 - Control panel with PLC control system.

Technical Parameters

Main Technical Parameter:

Size of Blasting Jobs:

Max.

Size for work piece (diameter*height) Ф1100×1200mm.

Blast nozzles(2 set) diameter of impeller: ф250 mm.

Rotating speed: 2900r/min.

Max.

volume for blasting: 2×180kg/min.

Power: 2×11kw.

Lifting Hook:

(double) Max.

hangering weight: 1000kg.

Speed of autorotation: 2.8m/min.

Self-Rotating power: 0.55kw.

Running speed: 20m/min.

Walking power: 0.2kw.

lifting speed: 8m/min.

Lifting power: 1.5kw.

Pulse Jet Type 1 set:

Dust Collector Model SXLT-9.

Cartridge Filter: Φ325 × 660 mm.

Cartridge Filter Quantity: 9pcs.

Air Volume: 9500m3/hr.

Centrifugal Air Fan: 7.5kw.


Company Contact:


  • Phone: 86-595-86588998

  • Address: No.35 Furong South Road, Meishan Town, Nanan , Fujian , China

  • Email: Email


Published date: September 23, 2017

  • Business Description: JX shot blast equipment portfolio consists of roller conveyor(through conveyor) shot blasting machine, linear motion shot blasting machine, hanger (hook type) shot blasting machine, rotary table shot blasting mahine, tumble belt shot blasting machine, wire mesh belt shot blasting machine and blast room (chamber) blasting machines.

    JX shot blasting machines have a wide range of application in automobile industries, casting industries, steel structural industries, shipping industries, stone industries, etc.

    However, JX Blast also manufactures special machine designs like crankshaft and engine block blast machines, which meet all technical requirements for surface treatment in modern foundries, and are easily adapted to the individual customers specifications.

    These blast systems are specifically designed for desanding, descaling, deflashing and deburring of castings or heat treated components.
