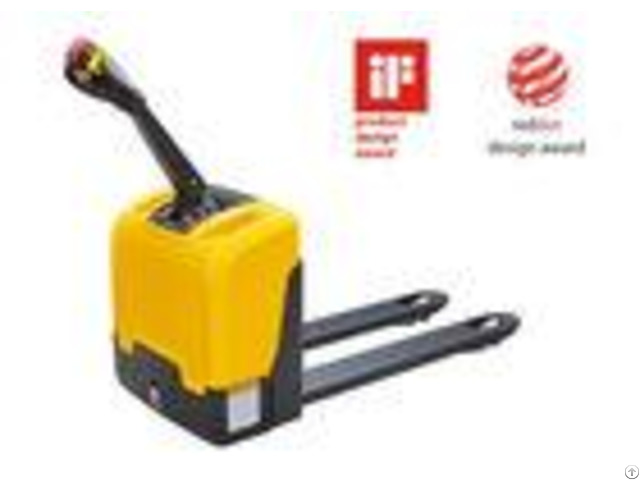

Full Sealed Battery Electric Pallet Truck Mini Type Anti Vibration 1800kg Capacity - China
price: check with company for price
1800kg smallest turning radius electric pallet truck mini type with full sealed battery Quick details: Model: Mini electric pallet truck CBD18W Capacity: 1800kg Fork height, lowered: 85/75mm Max.
lifting height: 190/180mm Fork dimensions: 53/160/1150(1220)mm Turning radius: 1347/1415mm Travel speed, laden/unladen: 4.5/5km/h Service weight: 250kg Advantages: # This electric pallet truck has the smallest turning radius with the same size as hand pallet truck, which widely used in narrow aisle warehouse, supermarket and containers.
# Horizontal drive wheel provides convenient replacement.
Adopting floating balance wheel can prevent the side swing of the truck when travelling.
# Travel smoothly and no swing.
# Great anti-vibration.
# Full sealed battery, free to maintain.
# All operations are done by various buttons on the handle.
# Different capacity can be chosen: 1500kg/1800kg/2000kg - - - - SPECIFICATIONS OF ELECTRIC PALLET TRUCK | Model | | CBD18W | Load capacity | kg | 1800 | Fork height, lowered | mm | 85/75 | Tyre size, front | mm | 195*70 | Tyre size, rear (single) | mm | 80*93/74*93 | Tyre size, rear (double) | mm | 80*70/74*70 | Max.
lifting height | mm | 190/180 | Height of tiller in drive position min.
/max.
| mm | 950/1310 | Overall length | mm | 1525/1595 | Length to face of forks | mm | 375 | Overall width | mm | 685 | Fork dimensions | mm | 53/160/1150(1220) | Width overall forks | mm | 520/550/685 | Aisle width for pallets 1000*1200 crossways | mm | 1725/1795 | Aisle width for pallets 800*1200 lengthways | mm | 1775/1795 | Turning radius | mm | 1347/1415 | Travel speed, laden/unladen | km/h | 4/4.5 | Battery | V/Ah | 24/80 | Service weight | kg | 250 | - - - - This is a mini electric pallet truck suitable for using in small spaces.
standard handle option: new design handle option: Frei handle
Company Contact:
- Phone: 86-21-51872729
- Address: No. 7001, Zhongchun Road, Minhang District, Shanghai, P.R.China, Shanghai , Shanghai , China
- Email:
Published date: January 9, 2018
- Business Description: 13 years has been adhering to the customer demand as the core, quality, integrity-based business philosophy, adhere to the pre-sale, sale, customer service three service tenet, provide customers with high-quality, safe and efficient whole logistics handling equipment.
