Mobile Mining Crusher Equipment Marble Grinder Mineral Beneficiation - China

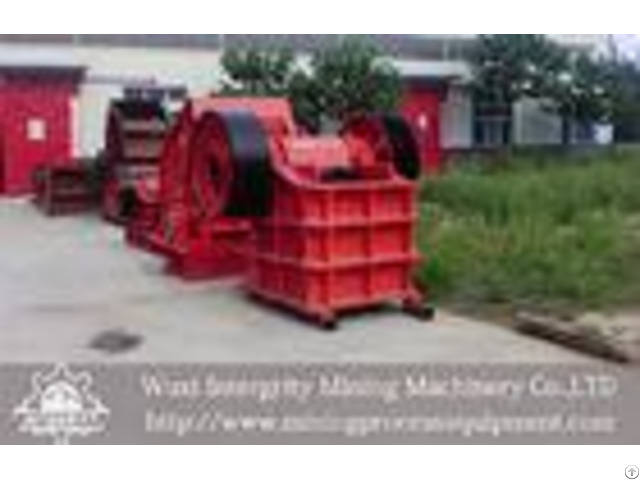

Mobile Mining Crusher Equipment Marble Grinder Mineral Beneficiation The Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on.

The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

Application of Marblejaw crusher for mining processing PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc.

compression strength does not exceed 320Pa.

This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.

Advantages& Characteristics of Marble jaw crusher 1 - High Crushing ratio, 2 - Easy maintenance, 3 - Even granularity, short toggle, 4 - Use high manganese steel, 5 - Good spare parts, 6 - Guarantee twelve months.

Marble Jaw crushers working principle: The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.

The angle between toggle plate and moving jaw plate increases when mobile jaw moving.

So the mobile jaw moves towards the fixed jaw.

The stuff will be crushed in this process.

The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Main technical parameters of Jaw Crusher - - - -

Model | Feed Opening (mm) | Max.

feeding (mm) | Discharge opening (mm) | capacity (t/h) | Rotation speed (r/min) | power (kw) | Weight (t) | Dimensions (LWH) (mm) | PE-150250 | 150250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720660850 | PE-200300 | 200300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910750990 | PE-200350 | 200350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000870990 | PE-250400 | 250400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 130010901270 | PE-400600 | 400600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 173017301630 | PE-500750 | 500750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 198020801870 | PE-600750 | 600750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 207020001920 | PE-600900 | 600900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 219022062300 | PE-7501060 | 7501060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 266024302800 | PE-8001060 | 8001060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 271024302800 | PE-8301060 | 8301060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 274024302800 | PE-8701060 | 8701060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 281024302800 | PE-9001060 | 9001060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 287024202940 | PE-9001200 | 9001200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 338028703330 | PE-10001200 | 10001200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 348028763330 | PE-12001500 | 12001500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 420033003500 | PE-15001800 | 15001800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 516036604248 | - - - - Quality and Service Jaw Crusher 1 - The Wearing parts: We use special materials for our spare parts, like Mn13, Cast Iron, Zinc Alloy etc, For example, the Movable jaw plate, the Fixed jaw plate, the side plate of Jaw crusher are made of Mn13, which is much wear resistance than normal materials.

And their usage life is longer.

2 - Quality: We guarantee twelve months for our quality.

During the guarantee period, if any problem, we will check and repair it for our customer FREELY.

If exceed the guarantee period, we will also check and responsible for our customers.

What' s more, if the crushing plant we recommended are not satisfied to our customer' s requirements, we will change the suitable machine for our customer FREELY.

This is our Quality policy.

3 - After-sale services: 1 - We will supply the most suitable crushing plant to customers according to their requirements.

2 - Assist clients to prepare for the first construction scheme, we will supply the Machine Base drawing and Installation manual.

3 - For the Installation, we will dispatch two or three engineers to guide the installation, take the trial test, train their worker, debug the equipment, adjust the capacity etc.

4 - The regular inspection and maintenance will be supplied on time.
