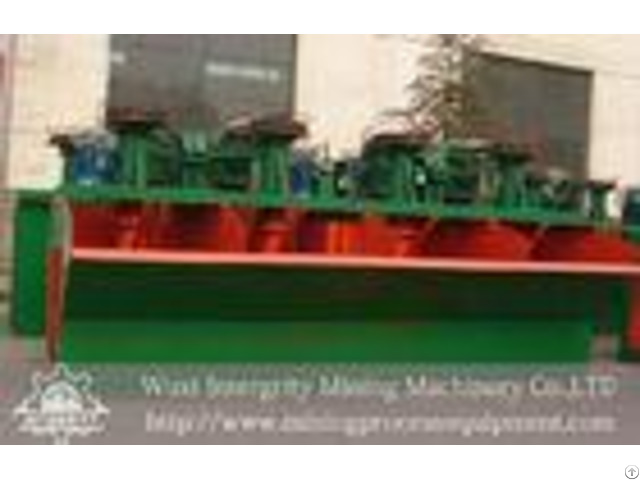

Mining Agitation Froth Flotation Cell Copper Concentrate Machine - China

Mining Agitation Froth Flotation Cell, Copper Concentrate Machine Copper flotation machine, flotation cells or flotation separator is used for classifying in non-ferrous and ferrous metal mineral.

BFflotation cell is the mechanical agitation type, and it can draw the inspiration and the pulp.

Compared with other flotation plants, its spirit is big; and the power loss is low, and the impeller lap wears lightly.

ISO9001 Certificated manufacturer copper ore flotation machine, flotation cells BF flotation separator introduction: BF series flotation machine is suitable for the flotation process, the ferrous metal mineral, also available in non-metallic mineral classification; especially, it is suitable for the ore, which is mixed by other fine grain, and complex ingredient, as the mineral separation process is able to obtain the good separation effect.

The advantages: The air input and the productivity are big; its structure is simple, thus the service is convenient; the impeller and the lap are composed of the wear-resisting rubber, which may carry on the design according to the user.

How the Copper flotation machine works? Through V- belt transmission, which brings centrifugal effect to form the negative pressure.

On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand it stirs ore slurry and mix with medication to form the mineralized froth.

By adjusting the height of flashboard to control the liquid level and make the useful froth scraped by loam board.

Specifications of BFFlotation Machine - - - -

Model | Effective capacity (m3) | Diameter of impeller (mm) | Impeller speed (m/s) | Entrained-air volume (m3/ m2 - min) | Capacity (m3/min) | Motor | Weight of single cell (kg) | Model | Power (KW) | BF-0.15 | 0.15 | 200 | 6 | 0.9-1.05 | 0.06-0.16 | Y112M-6 | 2.2 | 270 | BF-0.25 | 0.25 | 250 | 6 | 0.9-1.05 | 0.12-0.28 | Y100L-6 | 1.5 | 370 | BF-0.37 | 0.37 | 286 | 7.2 | 0.9-1.05 | 0.2-0.4 | Y90L-4 | 1.5 | 470 | BF-0.65 | 0.65 | 300 | 7.35 | 0.9-1.10 | 0.3-0.7 | Y132S-6 | 3 | 932 | BF-1.2 | 1.2 | 450 | 7.02 | 0.9-1.10 | 0.6-1.2 | Y132M2-6 | 5.5 | 1370 | Y132M1-6 | 4 | BF-2.0 | 2 | 500 | 7.5 | 0.9-1.10 | 1.0-2.0 | Y160M-6 | 7.5 | 1750 | BF-2.8 | 2.8 | 550 | 8.06 | 0.9-1.10 | 1.4-3.0 | Y180L-8 | 11 | 2130 | BF-4 | 4 | 650 | 8 | 0.9-1.10 | 2-4 | Y200L-8 | 15 | 2585 | BF-6 | 6 | 700 | 7.5 | 0.9-1.10 | 3-6 | Y225S-8 | 18.5 | 3300 | BF-8 | 8 | 760 | 7.5 | 0.9-1.10 | 4-8 | Y225M-8 | 22 | 4130 | BF-10 | 10 | 760 | 7.52 | 0.9-1.10 | 5-10 | Y225M-8 | 22 | 4500 | BF-16 | 16 | 850 | 8.7 | 0.9-1.10 | 8-15 | Y280S-8 | 37 | 8320 | Y280M-8 | 45 | BF-20 | 20 | 850 | 8.7 | 0.9-1.10 | 10-20 | Y280S-8 | 37 | 8670 | Y280M-8 | 45 | BF-24 | 24 | 920 | 8.7 | 0.9-1.10 | 12-24 | Y280M-8 | 45 | 8970 | - - - - Our Services Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.

Also design and manufacture products based on your specific needs, to train your technical personnel.

Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.

After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
