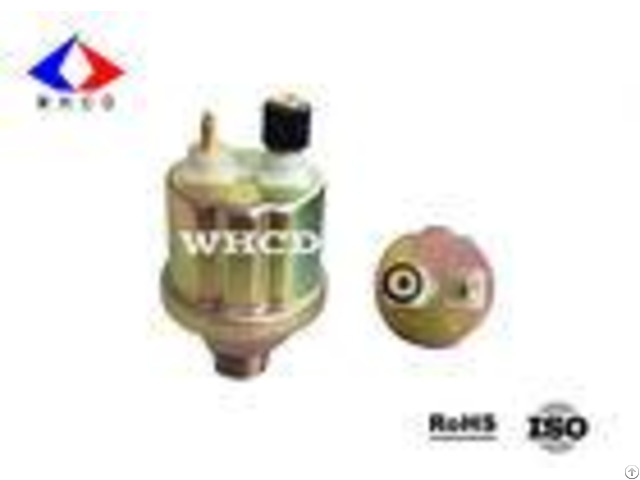

Truck Auto Parts Air Pressure Alarm Sensor With Color Zinc Plated - China

Truck Auto Parts Air Pressure Alarm Sensor With Color Zinc Plated Application Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc.

Technical Data # Operating voltage: 6~24V # Conducting power: < 5W # Operating temperature: -25 ~120(120 MAX 1H) # Measuring range: 0~5Bar or 0~10Bar # Alarm: 0.8Bar or 1.4Bar # Output signal: Standard resistance value: 10~184 # Thread fitting: NPT1/4, NPT1/8, M10, M10X1, M14x1.5 or customized as requires.

# Protection rank: IP66 Feature Superior long term stability Temperature compensated over wide range Low power consumption Excellent repeat-ability / Hysteresis Special design for customer Many OEM options Instruction This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display.

When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright.

This product is simple in structure, convenient in use and reliable in performance.

Cautions 1 - this product needs a wrench to be clamped to the six side nut and tighten the thread.

The maximum tightening torque is 17N.m. 2 - the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Our Service # # Our quotation is always valid for you if there is no world market unrest.

# Receiving your new inquiry, the details of products & the best price will be provided you asap.

# 7 days replacement and 12 months repair free of charge for quality problem.

# Port: Shanghai.

# Payment: T/T.

# OEM available # Delivery time is 7-10 working days.

# All goods will be fully checked by our QC.

# Package: The goods will be put into the packing box with instructions and certificate of quality first.

Then we pack them into the box with polystyrene foam avoiding the damage to the products.

# Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

Q & A - - - - Question | Answer | Whats your main products? | Oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor | Where are you? | Wuhan city, Hubei Province, China | Do you accept OEM? | Yes, OEM is welcomed | Are you manufacturer or trading company? | We are manufacturer with export license.

| Do you provide sample? | Yes | Do you have any certificate? | Yes, we have ISO/TS16949, RoHS | Whats the MOQ? | Theres no limit for MOQ | - - - -
