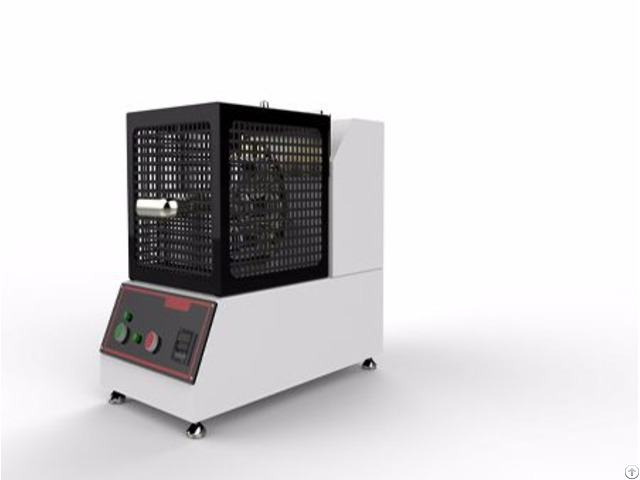

  • Water Vapor Permeability Tester - China

    price: check with company for price

    Standards:
    UNI EN IUP/15, UNI EN 13515, EN ISO 20344: 6.6, IUP 15, BS 3144 Method 24, SLP 25, DIN 53333, ISO 17699, DIN 53 429, METODO - 309 WI 009 Applications:
    Water Vapor Permeability Tester is mainly applicable to leathers and textiles used in footwear uppers and clothing where it gives a measure of the ability to remove perspiration from the surface of the wearer's skin.The tester is used to determine the amount of water vapour a material will transmit through its structure in a specified time. Product information:
    The vapor permeability of leather is evaluated by means of measuring the weight of water-vapor that permeates to specimen per unit time and per unit area. The main functional components includes: testing holder clamp, ventilation fan, control panel with functions of switch, time setting and recording.
    The machine has six separate test stations on a rotary table and each one has a sample holder. Silica gel desiccant is placed in the holder and the test material is placed over the neck of the holder and secured by a screw top. After weighing each holder, complete with silica gel and sample material, the holders are placed and locked into the rotary mechanism. After 7-8 hours the complete holder is weighed again and the gained weight is used to determine the degree of permeability. It is essential that the entire operation is carried out in a conditioned atmosphere of 20°C and 65% per cent relative humidity. In addition to the standard equipment, the tester is also supplied with a built-in timer to record the number of hours that testing has been carried out. Technical Parameters:
    Test stations: 6;
    Electronic timer for recording the testing times;
    The fan blade: 3;
    Dimension of fan blade: 75×90mm;
    Angle between fan blades: 120°;
    Gaps: 10±5mm;
    Speed of fan: 1400r/min;
    Rotary speed of specimen: 75r/min;
    Diameter of sample holders: 30±1mm;
    Diameter of fixtures: 30±1mm, helical;
    Weight: 45kg;
    Dimension: 350×570×450mm;
    Power Consumption: 300W.


    Company Contact:


    • Phone: +862167800179

    • Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, Shanghai, Shanghi, China

    • Email: Email


    Published date: October 29, 2017 -

    • Business Description: Qinsun Instruments Co., Ltd was founded in 2010,comprised of many experienced engineers and designers standing in the forefront of the industry. Qinsun specialize in the research and development of high quality lab instrument for textile testing industry. Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory,academic research institute and textile lab worldwide.
