Intelligent Simulation Transport Vibration Testing Machine - China

price: 3000.00 Dollar US$

Application
This equipment is designed and manufactured to simulate the transportation vibration like car or ship vibration for toys, electronics, furniture, gifts, pottery and porcelain, packaging, and so on.
To test the product vibration resistance.
Standard Compliance
EN, ANSI, UL, ASTM, ISTA international transportation standard.
Technical Parameters
Model
BF-SV-100
BF-SV-200
BF-SV-300
BF-SV-600
BF-SV-1000
table size
(MM)
1000*1200
1200*1200
1200*13000
1300*1500
1400*1500
Motor power
1HP(750W)
2HP(1500W)
3HP(2250W)
5HP(3750W)
10HP(7500W)
Machine weight (about)
200KG
250KG
300KG
400KG
600KG
maximum load(kg)
100
200
300
600
1000
Vibrating frequency (RPM)
100~300RPM
Speed mode
DC speed control
AC speed control

Power
AC 220V 50HZ
AC 380V 50HZ
Speed display precision
1RPM
Vibration mode
Reciprocating
Amplitude Range
25.4mm(1 inch )
Unit choose
H(hour), M(minute), S(second)
Time setting range
0~99 hours

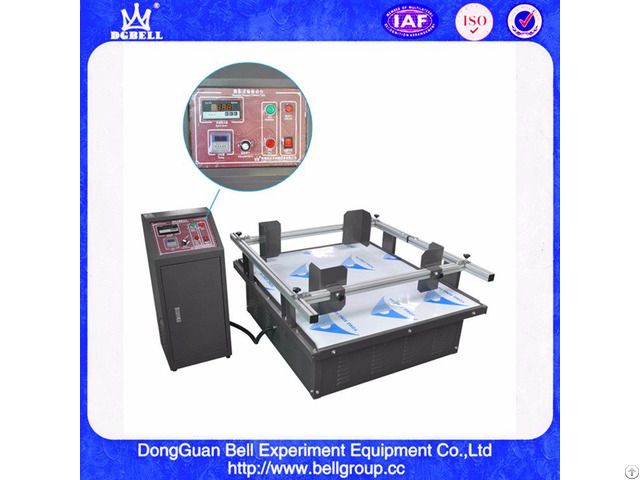

Pictures for Reference


Company Contact:


  • Phone: 86 139 25892133

  • Address: NO.25 Business Road 2, Yuwu village, Dongcheng District, Dongguan City, Dongguan, Guangdong, China

  • Email: Email


Published date: September 9, 2016 -

  • Business Description: Our company is specialized in Battery Safety ( Performance ) Testing Equipment and Environment ( Climatic ) Reliable Test Chamber over ten years.
    And the machine is design and manufacture according to the relevant standards such as GB, GJB, IEC, ISO, MIL,DIN, CE, ASTM, UN, UL etc.
