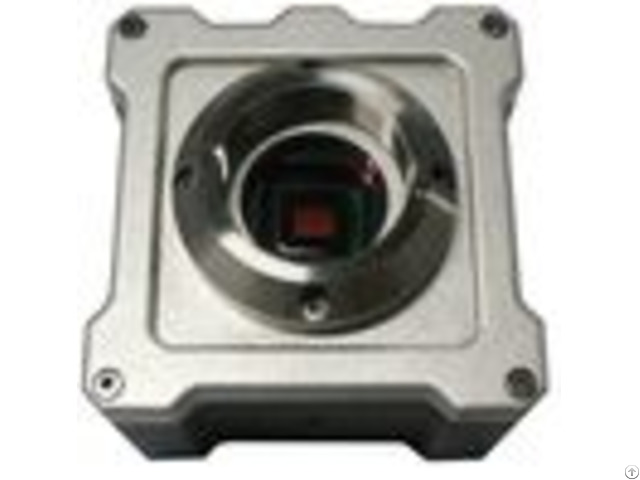

Industrial Inspection H1tb02c Ers And Global Reset Shutter Coms Camera - China
price: 400.00 Dollar US$
Model H1TB02C
Sensor Size 1/1.9" 2.3Mega CMOS back-illuminated BSI Color Pixel Size 3.75μm×3.75μm
Scanning Mode Progressive Scanning Quantum efficiency(max) >80%@650nm, >40%@850nm
Frame rate 30fps@1952x1098(12bit), Shutter ERS& Global reset
Dynamic Range 64dB
SNR 41dB
Spectral Response Figure 400-1000nm
Data Interface USB3.0 5Gbps
Control Interface 1xR485, 2xGPO, 1xStrobe, 1xTrigger
USB Cable 3M
Power DC 5V±5%
Current <500mA
White balance Manual white balance/Area White balance, Exposure time * 28us~1.8s
Exposure Control Auto/Manual/Area Exposure
Lens Mount C interface/CS interface Working Indictor Power Light, Trigger light, RS485 ommunication light Working temperature 0℃-60℃
Working humidity 0-85%
Software Specturmsee Advance
Product Size 29mmx29mmx60mm about 60g 2.3Mega Cmos Color Camera
Company Contact:
- Posted By: JPLY Electronic Technology Co., Ltd.
- Phone: +8602038077661
- Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: December 4, 2017
- Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.
With quality and integrity at our core, we deliver best-in-class camera and related product.
JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.
Being a leader of camera designer in China, JPLY is developing to a world class brand.
We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
