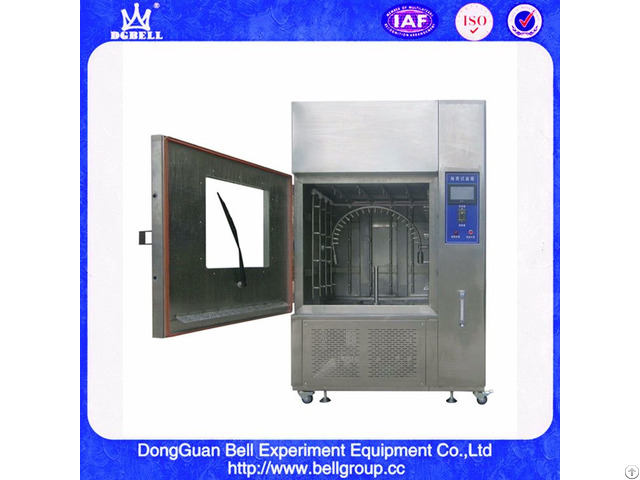

Climate Spray Nozzle Rain Water Test Chamber Price - China

Applications:

This machine used for inspect products performance of electronic products under rain spray conditions.

And it adopt scientific design to real simulate environment condition of water drop, spray, splash etc.

With frequency conversion technique, the sample holder able to rotate, water spray rod sweep angle and sweep frequency all controllable.

Standard Compliance:

IEC60529-2001, GB4208-2008, GB2423.23, GB5170.38, GBl0485—93, IPX1 - IPX2 - IPX3 - IPX4 of JIS, DIN, MZl etc.

standards

GB2423, 38-90, GB4706.32-2004

IEC-5129

Features

1 - Adopt technical design, makes the machine able to real simulate the environment condition of water drip, spray, splash etc.

2 - With advanced control system, and frequency conversion technique, makes the water spray volume, the sample holder able to rotate, water spray rod sweep angle and sweep frequency all controllable.

Technical Parameters

1 Inner Chamber Dimension: D800×W800×H80 0mm

2 Test Bench Rotary Speed: 1 ~10 rpm adjustable, rotary bench dimension: 400MM, 15°slip angle adjustable

rotary table height 200mm (controllable)

3 Spray Ring Radius: 300mm

4 Spray Pipe Sweeping Angle Range: 45°, 90°180°(able for setting)

5 Spray Hole Diameter: φ0.8 or 0.4mm

6 Distance between Spray Holes: 50mm

7 Each Spray Hole Water Flow: 0.07 L/min +5%

8 Spray Pressure(Kpa): 80-150

9 Swing Tube: Max.

±90°

10 IP12: drip hole 0.5MM, distance between each hole: 20X20MM

drip area: 600X600MM

height: 250MM

12 Testing Time: 1-999, 999min(controllable)

13 Water Spray Pressure: 80~100Kpa(controllable)

14 Distance between testing specimen and testing equipment is 200mm, after testing, checking the functions 24 hours after it go back normal temperature

15 Test chamber with stainless steel or cold rolled powder painted material, and with observation window made of tempered glass

16 Configured with round rotary disk (for putting specimen), rotary speed adjustable

17 Control System: Touch screen controller developed by Bell Company

18 Water cycling system, ensure water recycling usage

19 Power 220V 50Hz

20 Gross Weight About : 300KG

21 Power Source : AC 1ψ 3W 220V 50HZ or Customized
