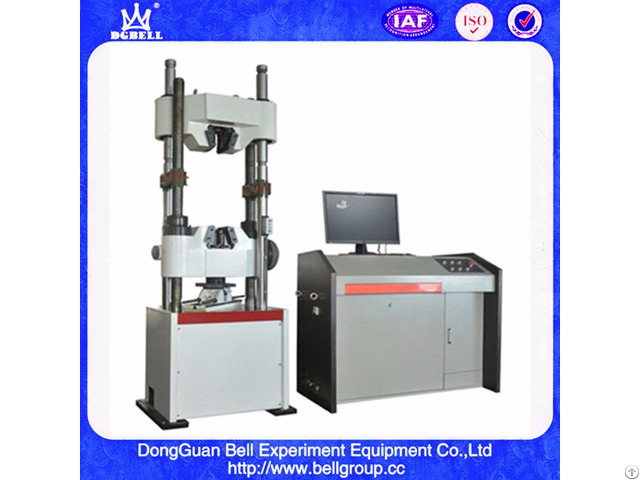

  • 600kn Hydraulic Universal Tensile Testing Machine Price - China

    price: 10000.00 Dollar US$

    Usage & Application

    BE-600C is computer servo controlled hydraulic universal testing machine, whichhost adoptsoil cylinder type, worm gear and worm drive, is mainly used for metal, nonmetal tensile, compression, bending and shear test.

    Suitable for metallurgy, construction, light industry, aviation, space, material, universities and colleges, scientific research, and other related fields.

    The experimental operation and data processing is in accordance with GB228-2002/ 2010 "materials at room temperature metal tensile test method" requirement.

    Technical Parameters

    Model

    BE-600C

    Max test force

    600KN

    Test force measurement range

    12KN - 600KN

    Test force valueaccuracy

    ±1%

    Displacement measurement resolution

    0.01mm

    Deformation measurement

    Standard configuration gauge length 50mm

    Maximum deformation 10mm (Optional)

    Deformation measurement precision

    ±0.5%

    Constant power, constant strain, constant displacement control range

    0.4%~100%FS

    Constant power, constant strain, constant displacement control precision

    When the setting value < 10% FS, the precision is within ±1.0% of the setting range

    When the setting value≥ 10% FS, the precision is within ±0.5% of the setting range

    Deformation rate control precision

    When the rate <0.05%FS, the precision is within ±2.0% of the setting range

    When the rate ≥0.05%FS, the precision is within ±0.5% of the setting range

    The piston movement maximum speed

    100mm/min

    Max tensile test space

    650mm

    Max compression space

    380mm

    The flatspecimen clampingthickness

    0-15mm

    The round specimen clamping diameter

    φ13-φ40mm

    The pressure plate size

    φ160mm

    The bending test roller spacing

    450 mm

    The roll width

    120mm

    Fulcrum diameter

    30mm

    Piston stroke

    150mm

    Clamping way

    Hydraulic pressure clamping

    Sensor and amplifier

    Oil pressure sensors, instrumented inside the PC; programmable amplifier, automaticallyturn to zero and demarcate

    External dimension

    Host: 1100 × 770 × 2500 mm

    Oil source: 1140×700×930mm

    Total weight

    4000KG


    Company Contact:


    • Phone: +86 136 1276 1334

    • Address: No. 11, Wusong 1st street, Yuwu, East City District, Dongguan , Guangdong , China

    • Email: Email


    Published date: September 9, 2016

    • Business Description: Our company is specialized in Battery Safety ( Performance ) Testing Equipment and Environment ( Climatic ) Reliable Test Chamber over ten years.

      And the machine is design and manufacture according to the relevant standards such as GB, GJB, IEC, ISO, MIL, DIN, CE, ASTM, UN, UL etc.
