10kns Servo Control Universal Tensile Compression Test Machine - China

Applications

This computer servo control tensile tester is design and manufactured to measure & test mechanical performance like tensile strength, compression strength, peeling strength, bending, cutting, shearing, tearing strength of metal, non metal and composite materials .

Standard Compliance

1 - Manufactured according standard :

GB/T 16491-1996 Electronic universal testing machines

2 - Inspection according to standard :

GB/T12160-2002 Calibration of extensometers used in uniaxial testing

(ISO 9513: 1999, Metallic materials--Calibration of extensometers used in uniaxial testing, IDT)

GB/T16825-1997 Verification of tensile testing machines

Structure

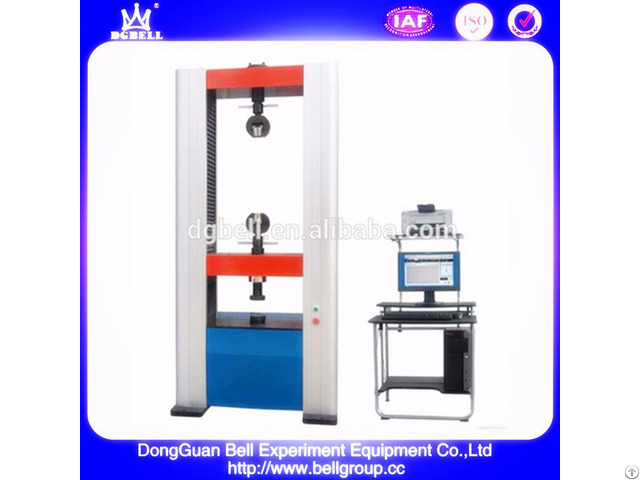

1 - Computer servo control universal tensile tester adopt double column type gantry structure.

Tension, compression and bending on downside.

2 - High precision ball screw : drive middle cross grinder move up and down, transmit load.

3 - Synchronous gear system: drive the screw rod to rotate load

Working Principle

Servo motor drives the synchronous gear system and high precision ball screw move up and down the cross grinder rotate load, finish various testing .

Tehnical Parameters

Model

BF-AI-10KNS

A.

Test Machine Technical Parameters

Max.

Testing Force

1000kg

Max.

Stretching Strength

1500mm (Including Fixture)

Compression Space

850mm (Including Fixture)

Test Velocity

0.001~200mm/min (keyboard input control)

Test Width

400mmMAX

Machine Dimension

80×50×200cm

Machine Weight

About 800kg

Accuracy

±0.2% of setting value

Operating Method

Operate on control panel or computer control, windows mode

Resolution

1/10, 000

Force Resolution

±1/300000 of Max.

Force, full range with no segment, same resolution

Power

220V/50HZ or Customized

B.

Force Measuring Parameter

Force value accuracy

0.5 Grade

Max.

Force Measuring Force

1000kg

Indication Value Resolution

1/300000 of Max.

Testing Force

Load Resolution

0.1KN

Effective force Measuring Range

0.2%~100%FS (Full range)

Load measuring Segment

1, 2, 5, 10 (automatic change)

Load indication value relative tolerance

≤±1.0%

Deformation Resolution

0.001mm

Deformation measuring Segment

Deformation indication value relative tolerance

≤±0.5%

Displacement Resolution

0.01mm

Displacement indication value relative tolerance

≤±1%

Stress control speed

0.05~60Mpa/s

Strain control speed

0.001~0.5mm/s

Displacement control speed

0.01~1.0mm/s

Features

1 - Exquisite appearance design .

Bell has pay attention on the equipment appearance design, some testing equipment had already get national appearance patent .

2 - Main key parts adopt international famous brand like Panasonic servo system, Celtron loading sensor etc.

3 - With circular arc synchronous type advanced gear system, have advantage of high efficiency, long service life, low noise, easy maintenance etc.

Adopt digital phase locked loop pulse control model, without falling & disorder.

4 - Use high precision ball screw load.

Stable loading, machine with long service life, good stability and energy saving.

5 - Multi protection devices .

For example : various electric protection, over load, over displacement, safety force limitation for software etc.

6 - Easy, reliable, and powerful operating interface .

7 - Open data structure, both the results and process parameters available.

8 - User can edit report .

Data output with EXCEL format, easy for later usage.
