Bellows Spring Fatigue Testing Machine - China

Computer controlled bellows fatigue testing machine is mainly used in large-scale precision spiral spring, disk spring, annular corrugated hose, widely used in flexible piping enterprises and spring factories.

Purpose

1 - This tester is a new generation of fatigue testing machine, specially designed for low cycle and high cycle fatigue testing of spring & bellows.

2 - The computer controlled electro-hydraulic servo bellows fatigue testing machine is mainly used in large-scale precision spiral spring, disk spring, annular corrugated hose, widely used in flexible piping enterprises and spring factories.

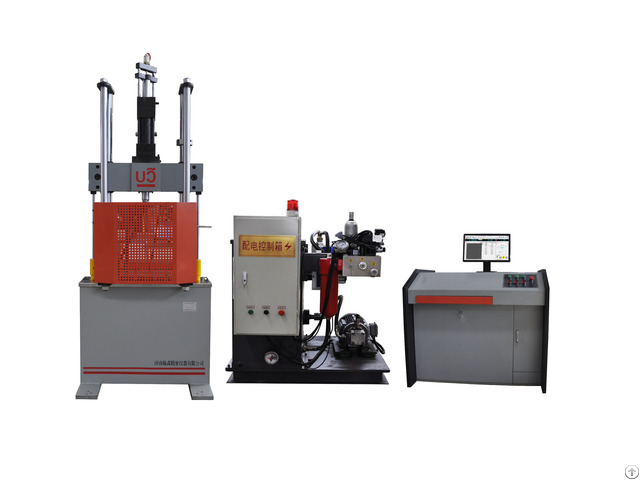

3 - Electro-hydraulic servo bellows fatigue testing machine consisted of one set host ( overhead type 50KN servo linear actuator ), constant pressure servo pump station ( flow 40L/min, system pressure 21MPa), hydraulic chuck, hydraulic drive module, full digital single channel servo controller, computer and printer.

Model PWS-50/100

Max.

dynamic Test force ±50KN

Dynamic fluctuation degree No more than ±0.5%

Maximum distance of actuator ±75mm ( can be customized)

Indication Accuracy: ±0.5%

Frequency range 0.01-10Hz

When 0.01- 1Hz, the maximum amplitude is ±50mm

When 0.01-10Hz, the maximum amplitude is ±5mm

Displacement measuring accuracy ±0.5% of indication value

Displacement measuring resolution 0.01mm

Counter 999 999 999 can be preset

Control method Load control; displacement control

Main test waveform Sine wave; triangular wave; square wave;oblique wave; and external input wave

Maximum test space 800mm ( not include clamp )

Distance between two columns 600mm

Host stiffness 1.7*108N/mm.

Host dimension About 1000*710*2800mm

Working pressure 21MPa

Constant pressure servo pump station specification Flow 40L/min; 21MPa; motor power 22KW; 1450r/min

Clamp Special fixture for corrugated pipe

Power supply AC380V

Host Weight About 1200kg
