Bluetooth Mac Compatible Keyboard Multi Host Switchable - Taiwan

FEATURES

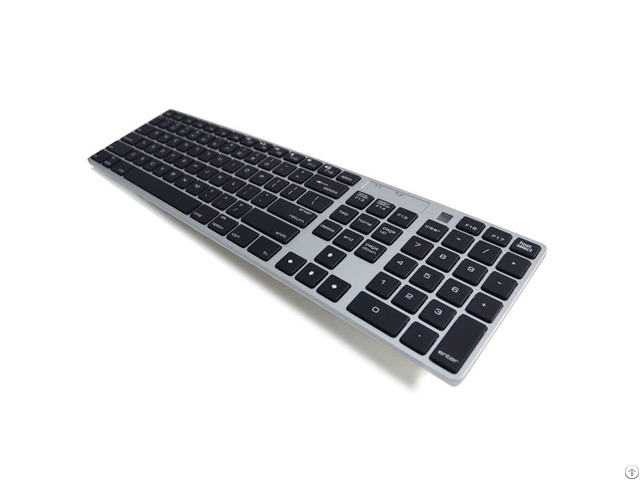

WKB-801A, a stylish & low profile Bluetooth keyboard, is at the forefront of cutting edge wireless keyboard with multi-host switchable feature (patent).

It is an ideal wireless keyboard for using iMac, iPad, iPhone or other Android OS Tablets in between, thanks to multi-host switchable feature.

This full size keyboard come equipped with Bluetooth 3.0 technology with 2 x AA batteries, scissor-type key mechanism among many other features.

SPECIFICATION

Key Number : 109/ 110 keys (US/ EU)

Feature key : “ host select “ key + 1, 2 ~ 8 keys for Multi-host

HTN Display : 1 digit HTN display, monchrome

Number of host Register : Register up to 8 different Bluetooth hosts

Tx Technology : Bluetooth® wireless technology, V.

3.0

Antenna/ Antenna Gain : PCB antenna / 0 dBi (Typ)

Frequency/ Channels : 2.402Ghz ~ 2.480Ghz/ 79 channels

Modulation : GFSK (Differential phase shift keying)

Output Power/ Operating Range : Normal mode (GFSK): -0.61 dBm / Up to 8 M (Free space)

Data Rate / Sensitivity : Up to 2.1Mbps/ <0.1% BER at -70dBm

Key Switch : Scissor-type Switch with Rubber dome (5 million life cycle time)

Key Force/ Traveling Distance : 55 +/- 7 gm; 2.1 +/- 0.2 mm

2 LED Indicator : Pairing (blinking), CapLock (5 Min.

Max.

) and Power On in Green LED; Host link in Blue LED

Function Keys for Mac : F1 Decrease Brightness, F2 Increase Brightness, F3 Expose, F4 Dashboard

Function Keys for iPhone/ iPad : F13 Home Screen, F14 Sleep/Wake, eject On-screen Keyboard

Switch / Button : 1 x power slide switch/ 1 x pairing button

Input Power / Batteries : 3.0 VDC, 100mA / 2 x AA Alkaline batteries

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Dimension (mm)/ Weight : 434.2 (L) x 115.3 (W) x 23.5 (H) including rubber feet/ 0.6 kgs (NW); 0.8 kgs (GW)

Compatibility : Compatible with Mac OS 10.5.8 or later version, iPad, iPhone 3Gs/ 4, Android tablet PC

Accessories : 2 x AA Alkaline batteries, User’s Manual, Packing Information : 20 pcs/cnt; 9.8kgs (N.W.)/ctn, 13.8kgs (G.W.)/ctn, carton dimension 52 L x 33 W x 27 H cm

Company Contact:

• Posted By: DIGIMORE ELECTRONICS CO., LTD.

• Phone: 886-2-23113299

• Address: 10 FL., No. 61, Yan-Ping S. Rd, Taipei , Taiwan

• Email:

• Website: https://www.capacity-keyboard.com

• Business Description: Digimore Electronics Co., Ltd was established in 2004, located in Taiwan.

  Over 20 year experience engineers of PC keyboard design, Digimore has successfully developed a variety of Desktop Keyboards, Membrane-type capacity Gaming keyboard with full N-key rollover support, POS keyboard built-in smart card reader/ magnetic stripe card reader, Programmable POS keyboards, numeric keypads and etc.

  In 2011, we launched several new products of Bluetooth keyboards such as Mac Compatible Keyboards with multi-host switchable support, Bluetooth Keypad and etc.

  We also launched 1st one of low-profile smart card USB keyboard in the world specially designed for Mac.

  In 2016, We've started to provide ODM services with different modules including biometric/ fingerprint modules, keyboard modules and touch pad module for KVM, Bluetooth 3.0, 4.2 & 5.0 module, Bluetooth LaunchPad, 433 Mhz ASK Transmitter and Receiver modules, 2.4 Ghz GFSK Transceiver module, Keyboard Controller, Qi wireless charger module, NFC Forum Type 4 TAG module and etc.

  Thanks to our capability of logic design, we are able to meet customer's demand and to provide excellent, value for money products.

  Your solution provider is in the heart of our business.
