Fixed Flat Tv Antenna For Home S Series - China

S-series products are designed for watching TV indoors.

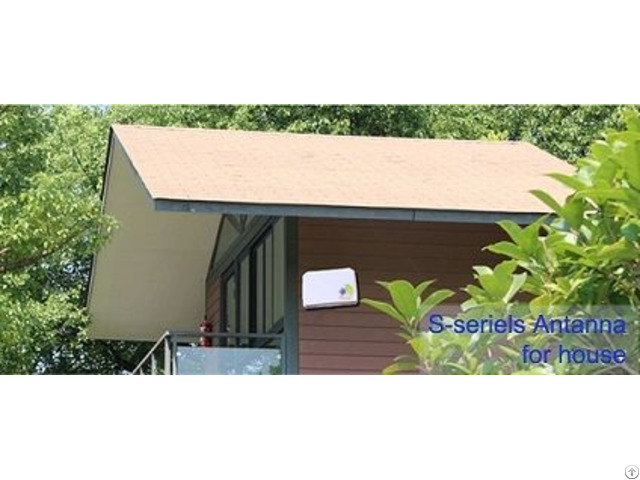

You can fix it on the window, the roof or the wall.

It offers an unmatched ease of use and frees you from annoying installation.

And the slim outlook makes it more beautiful than the traditional parabolic antennas.

Features: - Good environment adaptability with its color and designs easy to be changed.

- Slim product outlook with ultra-high radiation efficiency.

- Wideband and dual polar covering full Ku-band channels.

- No need to rotate the antenna panel with its patented skew technology while adjusting the skew.

Models: S30: Operating Frequency: 10.7~12.75GHz Polarization: Dual Linear/Circular Polar Gain: 30.0dBi@12GHz Min.

EIRP: 50dBW Dimensions: 41X16X11CM Waterproof Class: IPX6 S33: Operating Frequency: 10.7~12.75GHz Polarization: Dual Linear/Circular Polar Gain: 33.2dBi@12GHz Min.

EIRP: 48dBW Dimensions: 41X33X12.5CM Waterproof Class: IPX6 S36: Operating Frequency: 10.7~12.75GHz Polarization: Dual Linear/Circular Polar Gain: 36.0dBi@12GHz Min.

EIRP: 46dBW Dimensions: 41X50X12.5CM Waterproof Class: IPX6 Remark: S-seriels products are customizable now.

Company Contact:

• Posted By: Sattel (Shanghai) Technologies Co., Ltd.

• Phone: 862154397193

• Address: Room 2202, No. 15, Lane 233, Puming Road, Pudong New District, Shanghai , Shanghai , China

• Email:

• Website: http://www.sattel.com.cn

• Business Description: Established in 2009 and located nearby the Bund of Shanghai, Sattel is one of the worldly top expert and leading player dedicated on innovative antennas and high-integrated RF components.

  Our core competitive technologies cover high-efficiency flat array antennas with adjustable polarization, air-fed phased array antennas and photovoltaic antennas.

  And the main products include:

  1 - Fixed flat TV antenna for home

  2 - In-motion TV antenna for vehicle and vessel

  3 - Portable TV antenna for camping

  4 - Satellite antenna and RF components

  which are extensively used by telecommunications services providers, emergency services and homeland security agencies, military organizations, health care providers, news organizations and etc.

  To be the primary choice in world Satcom industry and drive the world connected seamlessly, we entirely devote ourselves to the R&D and production of consumer electronic SATCOM products, 4G+/5G communication antennas and cost-effective radars for military and civilian industry.

  Where there is a demand on SATCOM solution, there must be a settlement from Sattel
