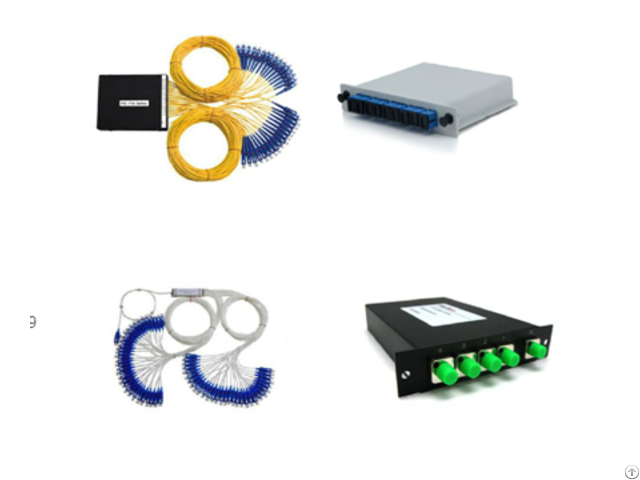

Plc Splitter - China

price: contact company for price

PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability.


Features:

Low Insertion loss

Low PDL

High Return Loss

Uniform Power Splitting

Compact Design

Wide Operating Wavelength

Wide Operating Temperature

Excellent Environmental & Mechanical Stability

Qualified Under Telcordia GR-1221 and GR-1209

Applications:

FTTx (FTTB, FTTH, FTTC)

Passive Optical Networks (PON)

Local Area Networks (LAN)

CATV Systems

Test Equipments


Specifications:

Parameter Value

Product Type 1×2/2x2 1×4/2x4 1×8/2x8 1×16/2x16 1×32/2x32 1×64/2x64 1×128/2x128

Wavelength(nm) 1260~1650

I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2

Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8


Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0

PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0

TDL(Max.)(dB) 0.5

R.L(dB) ≥55(APC)/≥55(UPC)

Directivity(dB) ≥55

Operating & Storage
Temperature -40~+85


Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.


Ordering Information:

PLC

Package Connector Pigtail Pigtail Length
Structure Type End To End (Input-output) (Input-output) Fiber Core (Input-output)


1002=1X2 M= Miniature F=0.9mm SU=SC/UPC B=250um bare 1=G652D 05=0.5m
1004=1X4 Package Pigtail with SA=SC/APC fiber 2=G657A1 10=1m
1032=1X32 connector
B= Box FU=FC/UPC L=900um loose 3=OM3
15=1.5m
1064=1x64 package D= 2.0/3.0mm FA=FC/APC tube 4=OM4

2002=2X2 R= Rack pigtail with ST=ST/UPC 2=2.0mm 5=50/125 20=2m
connector

2004=2X4 Mount LA=LC/APC 6=62.5/125
3=3.0mm XX= other
N= Pigtail

2008=2X8 P= Blade LU=LC/UPC X= other
without A=Adaptor
2032=2X32 Package 00=NONE
connector


2064=2X64 A=Adapter XX=other XX= other

xxxx=other


Package Size:

Box package Miniature Package Blade Package Rack Mount

01=100X80X9 11=40X4X4 15=60X7X4 21=130X100X25 XU=19” Rack Mount
02=120X80X18 12=50X7X4 16=80X12X5 24=130X100X206 (X=1, 2, 3, 4, )

03=140X114X18 13=60X12X4 22=130X100X50 31=R Type Mount Box
04=100X80X9 25=130X100X284
17=100X20X6 32=Wall-Mount Type

05=LGX 14=50x4X4 23=130X100X102 33=ODF Type
26=130X100X76

XX= other XX= other XX= other
XX= other


Company Contact:


  • Phone: +8613434796118

  • Address: F4,No.17,Qingnian Road,Shiyan Street,Baoan Distric, ShenZhen, GuangDong, China

  • Email: Email


Published date: May 19, 2016 -

  • Business Description: SHENZHEN OPELINK TECHNOLOGY CO.,Ltd is a leading worldwide manufacturer and supplier of passive and active fiber optic components and equipment.Our main products include:Passive Series such as Optical Splitter,WDM(CWDM,DWDM,OADM,AWG),patch cord,Fiber Cable,Optical Circulator,Optical Isolator.Active Series includes SFP Module,Optical Transmitter and Receiver,Optical Switch,Optical amplifier,etc.And there is also Optical Passive Equipment,Fixture,Fiber Tool Series and Grinding Material Series products.
    Our companny adopts advanced manufacturing technology,high precision production and inspection equipment.Meanwhile,we strictly execute Bellcore,UL,ROHS,5S and ISO9001-2008.Our products have been exported to many foreign countries like France,USA,Brazil,Korea,Russia etc.
    Adhering to the services of "Quality comes first,Service-Oriented",our company will keep on providing finest products as well as timely and satisfactory after-sale service.
