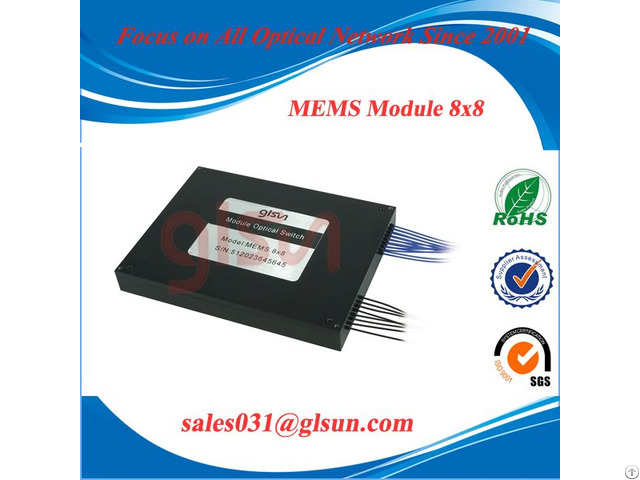

Glsun Mxn Matrix Optical Switch - China

INTRODUCTION:

Optical switch is a kind of optical path controlling device, with the ability to control and switch the optical path.

It is significant in optical communications, mainly used for multi-channel fiber monitoring in optical transmission system, LAN multi light source/detector automatically switching and optical sensor multi-points dynamic monitoring system; optical fiber, optical component, and field optical cable testing in optical testing system; optical device installation and adjustment.

MxN optical switch can switch one of the input channels to one of the output channels.

Features

Low Insert Loss, Fast Switching Speed

Transparent Transmission Signal, High Stability, High Reliability Specification 4x4

4x8

8x8

Test Wavelength

1550 nm

Insert Loss

Typ: 1.2dB Max: 1.5dB

Repeatability

≤0.05dB

Return Loss

≥45dB

Crosstalk

≥50dB

WDL

≤0.20 dB

PDL

≤0.1 dB

Switching Time

≤ 20ms Fiber Type

SM (9/125um)

Connectors

FC/UPC

Power Supply

4.8V~5.5V

Working Temperature

-5 ~ + 70℃

Storage Temperature

-30 ~ + 75℃

Dimension

120 mm x 100 mm x 15 mm
