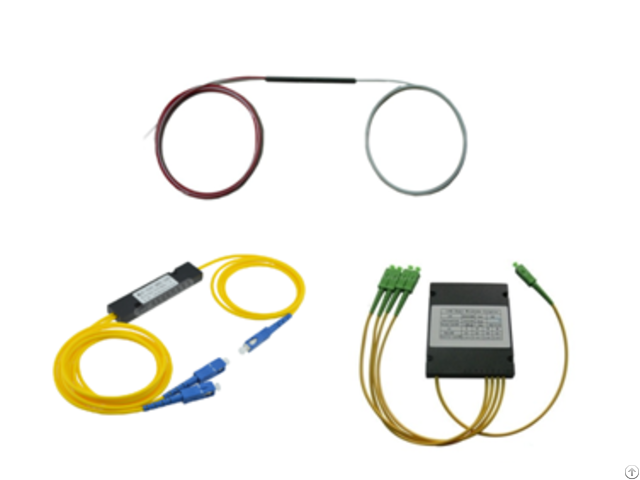

Fbt Optical Coupler - China

Features:

Low insertion loss, low PDL

High credibility and stability

Industry standard and custom housing available

Various coupling ratio and connector available

Application:

Optical communication system

CATV System

System and signal monitoring

Fiber to the home (FTTH)

Optical Specifications:

Table（1）

Coupling Ratio Insertion Loss（dB）

P Grade S Grade

50/50 ≤3.4 ≤3.6

45/55 ≤3.7/2.7 ≤3.8/2.9

40/60 ≤4.4/2.6 ≤4.7/2.8

35/65 ≤4.8/2.0 ≤4.9/2.10

30/70 ≤5.7/1.9 ≤6.0/2.0

25/75 ≤6.9/1.3 ≤6.5/1.4

20/80 ≤7.6/1.2 ≤8.0/1.3

15/85 ≤8.6/0.7 ≤8.9/0.88

10/90 ≤11.0/0.65 ≤11.5/0.8

5/95 ≤14.2/0.4 ≤14.8/0.5

2/98 ≤18.5/0.25 ≤19.0/0.35

1/99 ≤21.5/0.2 ≤22.0/0.3

Excess Loss(Typ.

)（dB） ≤0.1

PDL(Max.

)（dB） ≤0.1

Operating Wavelength（nm） 1310±40, 1550±40, 1310/1550±40, 1310/1550/1490±40 or custom wavelength

Directivity（dB） ≥55

Return Loss（dB） ≥50

Port Configuration 1×2 or 2×2

Table（2）

Parameter Specification

Operating Wavelength（nm） 1310±40, 1550±40, 1490±10

Fiber Type SMF

(1×N)(2×N) N=3 N=4 N=5 N=6 N=8 N=10 N=16 N=24 N=32

IL(MAX)（dB） 5.4 6.9 8.1 8.9 10.3 11.5 13.8 15.6 17.2

Uniformity（dB） 0.5 0.7 1.1 1.3 1.5 1.7 1.8 2 2.2

PDL（dB） ≤0.20 ≤0.20 ≤0.30 ≤0.30 ≤0.30 ≤0.40 ≤0.40 ≤0.50 ≤0.50

Return Loss（dB） ≥55

Directivity（dB） ≥50



Note: All the data above does not include connectors.
