Armoured Loose Tube Fiber Cable - China

Feature:

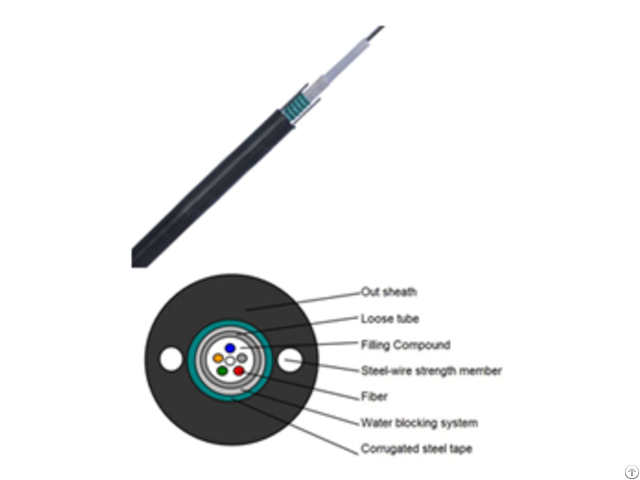

Steel-wire parallel member, filler protect tube fiber steel tape amored;

Excellent mechanical and environmental performance;

compact structure;

can be installed conveniently and operated simply.

Application:

Adopted to Outdoor distribution；

Suitable for aerial .

pipeline laying method；

Long distance and local area network communication.

Technical Parameters: Fiber Cable Characteristics:

Fiber count 2, 4, 6, 8 10, 12

Outer diameter(mm) 8.3 9.0

Nominal Weight(kg/km) 66 82

Crush Resistance(N/100mm)

Long/ Short term 300

1000 300

1000

tensile Strength(N)

Long/ Short term 600

1500 600

1500

Min.

Bending

Radius(mm) Dynamic 20D

static 10D

Temperature Range -40℃-70℃

Order Information:



Fiber Core Fiber Type Count Cable OD reinforcer Fiber Jacket Jacked Color

1=G652D

2=G657A1

3=G657A2

4=50/125

5=62.5/125

6=OM3

7=OM4

X=other S=simplex

Z=zipcord Duplex

Y=Round Duplex

F=Flat Duplex

B=Breakout

D=Distribution

R=Ribbon

A=Armored

W=Waterproof

X=other 001=1 core

002=2 cores

003=3 cores

024=24 cores

XXX=other 01= 0.9mm

02=2.0mm

03=3.0mm

04=2.9*6.0mm

05=1.9*3.1mm

06=4.2*7.6mm

07=9.0mm

08=11.2mm

09=4.0*7.0mm

XX=other 1=Kevlar

2=FRP

3=Armoured steel tape

4=Steel wire

5= Armoured steel tape & Steel wire

PR=PVC-OFNR

PP=PVC-OFNP

LH=LSZH

PE=PE

PU=TPU

LN=Nylon

HT=Hytrel

xx=other 01=Blue 02=Orange

03=Green 04=Brown

05=Slate 06=White

07=Red 08=Black

09=Yellow 10=Violet

11=Rose 12=Aqua

13=12 Color

XX=其它
