  • Metal Wire Gauze Structured Packing - China

    price: 500.00 Dollar US$

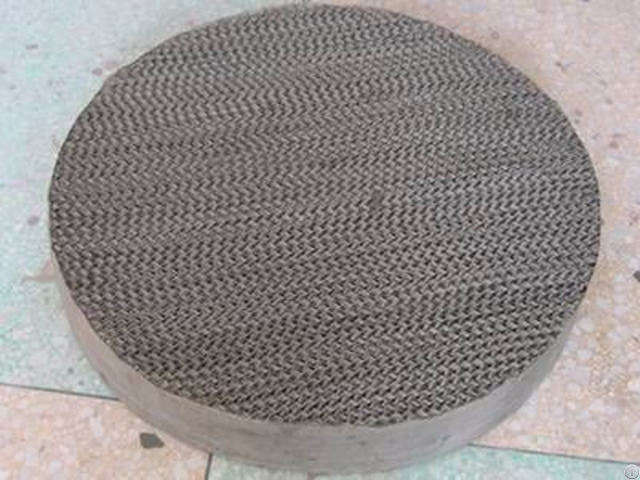

    Metal Wire Gauze Structured Packing with High Separation Rate There is a piece of metal wire gauze structured packing set on the ground.
    MWGSP-01: Metal wire gauze structured packing is a universal type of packing composed by several mesh plate corrugated sheets.
    Metal wire gauze structured packing is an universal type of packing composed by several mesh plate corrugated sheets which are vertical arranged in disks. Instead of being welded, metal wire gauze structured packings are fixed by being nailed or being ringed to adhere to the walls. Its structure can not only change the distribution of liquid, but also increase the transfer efficiency. The key advantage of wire gauze structured packing is the high separation efficiency even at very small liquid loads along with its low pressure drop and small liquid hold-up, making it very suitable for distillation of thermally sensitive products. This is the structural diagram of metal wire gauze structured packing.
    MWGSP-02: Metal wire gauze structured packing has high separation rate.
    Specification - metal wire gauze structured packing
    Model Theoretical plate number (1/m) Specific surface area (m2/m3) Void volume (m3/m3) Pressure drop (Pa/m) Fluid load m3/(m2┬Ěh) Biggest F factor (Pa0.5)
    MWGSPS-1 0.3 - 1 125 0.987 140 0.5 - 100 3.5
    MWGSPS-2 1 - 1.5 125 0, 987 200 0.5 - 100 3
    MWGSPS-3 1.6 - 2 250 0.975 180 0.5 - 100 3.1
    MWGSPS-4 2 - 3 250 0.957 230 0.5 - 100 2.6
    MWGSPS-5 2.3 - 3 350 0.965 220 0.5 - 80 2.3
    MWGSPS-6 3 - 4 350 0.965 280 0.5 - 80 2.2
    MWGSPS-7 3 - 4 500 0.957 250 0.5 - 60 2.3
    MWGSPS-8 4 - 5 500 0.957 300 0.5 - 60 2
    Features
    Metal wire gauze structured packing is a type of structured packing which has great flux, high separation rate, low resistance, low pressure drop, low cost and good anti-plugging performance. It shows the details of the wire gauze of metal wire gauze structured packing.
    MWGSP-03: Metal wire gauze structured packing has good anti-plugging performance.A piece of metal wire gauze structured packing is placed on the carton box.
    MWGSP-04: Metal wire gauze structured packing is usually packed in carton boxes.
    Application
    Metal wire gauze structured packing has a wide application in the purification, extraction, distillation, cooling and many other possess in the chemical, petrochemical, metallurgic, pharmaceutical and light industry, etc. Package Banded with stainless steel belts.
    Packed with carton boxes & wooden boxes.


    Company Contact:


    • Phone: +86-318-18220891

    • Address: East Industrial Zone, Anping, Hebei, China., Hengshuishi, Hebei, China

    • Email: Email


    Published date: March 13, 2017 -

    • Business Description: Tower Packing Professional Supplier

      Masaito Metal Co., Ltd. is a manufacturing company founded in 1990 in Hengshui City, Hebei Province, China. We mainly manufacture high-quality tower packings, tower trays, distributors, demisters in various dimensions and styles. Our packing towers are exported to all over the world, and we have won wide support and trust from consumers.

      We provide our first-class tower packings, tower trays, distributors, demisters in reasonable prices and quote each customer individually including delivery to make you clear your exact costs. We also have an excellent service team to make sure that your problems can be solved timely and perfectly.

      Seven Indicators System for You to Feel Comfortable Buying

      Material Supply System: We use the best quality raw materials which are supplied by regular suppliers. Raw materials will be put in use after inspection.
      Production Management System: Our managers have a high demand on the production. Workers who participates in producing are demanded to dress uniformly.
      QC System: We adopt advanced testing technology to control and ensure the quality of our tower packings. Unqualified products will not be allow to go into next process.
      Packing System: Our tower packings are packed in carton boxes or wooden boxes. All of our boxes are dry and strong enough to protect the tower internals.
      Inventory System: Our tower packings, tower trays, distributors and demisters are stored respectively in our warehouses which are clean and roomy.
      Inspection System: Before delivery, our tower internals will be detected and checked again. Whichever fails to pass the inspection of products on quality shall not be allowed to be transported out of the factory.
      After-Sales Service System: We have an excellent after-sales service team and process ensure that your problem can be solved timely and perfectly. Changing, refunding and being compensated will be easily for you.
      This picture shows the superb tower packings manufacture and service that our company provides.
