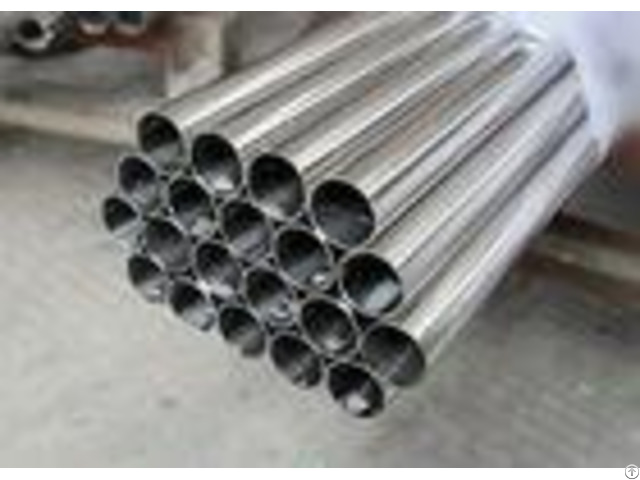

Anti Rust 304 Stainless Steel Sanitary Tubing For Wine And Brewery Industrial - China

3A Certified 1/2'' OD 16 Gauge (0.065'') TP304 Polished Stainless Steel Sanitary Tubing, Seamless, 20' Length Features: Spezilla's stainless steel sanitary tubingis manufactured in accordance with 3A / ASTM A270 sanitary standards.

Our stainless steel sanitary tubingis made from cold rolled stainless steel strip whose chemical elements are specially controlled to enhance weldability.

The weld bead is cold-worked to a full finished condition, resulting in a virtually undetectable longitudinal weld.

Bright annealing to 1, 900F minimum follows in a controlled atmosphere to preserve maximum structural integrity.

The tubes are then mechanically polished to a 180 grit (20 -in.

Ra maximum) interior and 150 grit (32 -in.

Ra maximum) exterior finish via Spezilla's state-of-the-art process.

Stainless steel sanitary tubings are then line-stenciled with OD, wall, ASTM specifications, grade, and heat number.

Descriptions: - - - - Item Code: | SPW-A270-304-0050-065-MP- 3A | Tube OD: | 1/2'' | Wall: | 16 Gauge (0.065'') | Length: | 20' | OD Tolerance: | +/-0.005'' / +/-0.13MM | WT Tolerance: | +/-10% | Length Tolerance: | +1/8'' / +3.18MM | Material: | TP304 | Standard: | 3A / ASTM A270 / A270M | Finish: | 20Ra ID / 32Ra OD | Polish: | Mechanical Polished | Type: | Seamless | Certification: | 3A - Food / Dairy Grade | Mill Test Certificate: | EN10204 3.1 | Packing: | Sleeved, Ends Capped, Wooden Boxed | - - - - Chemical Compositions: - - - - Elements | 304 (wt%) | C / Max.

| 0.08 | Mn / Max | 2.00 | P / Max | 0.045 | S / Max | 0.030 | Si / Max | 1.00 | Ni | 8.00 - 11.00 | Cr | 18.00 - 20.00 | Mo | N/A | Fe | Bal.

| Cu | N/A | N | N/A | - - - - Mechanical Properties: - - - - Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HRB) | 304 | 515 | 205 | 35 | 90 | - - - - Quality Assurance: Spezilla's stainless steel sanitary tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment.

1 - Chemical Composition: PMI Test 2 - Mechanical Properties: Tensile Test, Hardsness Test 3 - 100% Eddy Current, Air Under Water Test, Hydrostatic Test 4 - Flange Test, Flattening Test, Reverse Flattening Test, Reverse Bending Test.

5 - Dimensional Check: OD, WT, Straightness 6 - Metallurgical Test Applications: Our stainless steel sanitary tubings are applicable to a wide range of manufacturing industries: 1 - Food & Beverage 2 - Dairy 3 - Wine & Brewery 4 - Cosmetic
