Hy Dy20 Co2 Power Supply With Blue Color For Reci W6 W8 Tube - China

price: 165.00 Dollar US$

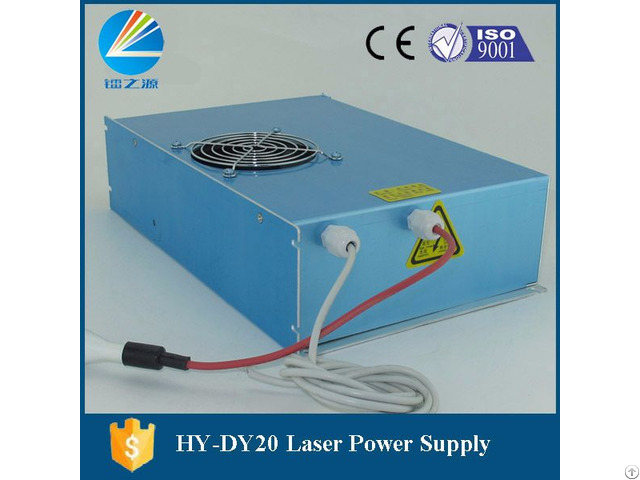

Hy Dy20 Co2 Power Supply With Blue Color For Reci W6 W8 Tube

Products Photos Catalog Dy20 Power Blue Reci Photos Catalog

Specifications

Type HY-DY20

Input Input voltage AC220V or 110V(please specify when placing order)

AC frequency 47-440HZ

Max input power 1000W

Max input current 10A

Output Max output voltage 50KV

Max output current 35mA

Efficiency >=90%(full load)

MTBF(Mean time between failure) >=10000hours

Response speed <=1ms(from the TTL signal is given to the output current up to 90% of setting current)

Withstand voltage Input-output, input-enclosure: AC1500V 10mA 60s, output cathode is connected with enclosure.

Environment Operating temperature: -10~40degrees , relative humidity: <=90%

Cooling Force air cooling(FAC)

Dimension 79*200*290mm

Weight 3.14kg

Main features

1)This power supply is specially designed for special laser tube.

It makes laser tube output larger and more stable.

2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.

3) Easy Control: The start and stop of laser can be easily controlled by TTL level.

4) The power supply has output open circuit protection.

5) The power supply has TTL signal indication, water through signal indication and laser output indication.

6)This power supply has the BUTTON to test output laser manually.

7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.
