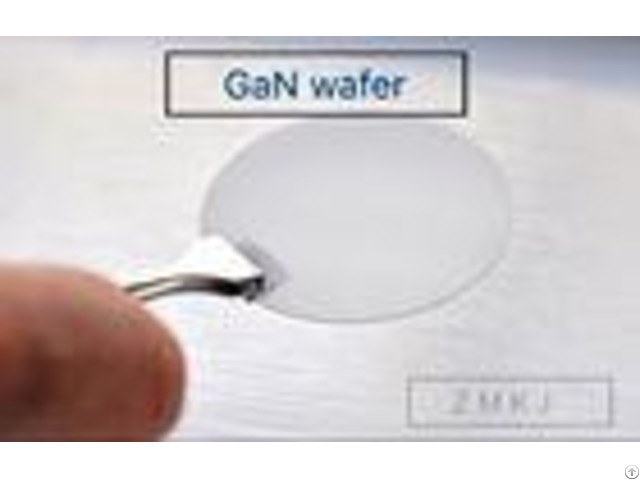

  • Wurtzite Crystal Structure Led Wafer Gan Gallium Nitride Substrates Template - China

    price: check with company for price

    2inch GaN substrates template, GaN wafer for LeD, semiconducting Gallium Nitride Wafer for ld, GaN template, mocvd GaN Wafer, GaN Specifications/Special Features: # # Gallium nitride (GaN) is a very hard madematerial that has a wurtzite crystal structure and probably is the most important semiconductor material as the third generation semi material.

    # It can be used to emit brilliant light in the form of light emitting diodes (LEDs) and laser diodes, as well as being the key material for next generation high frequency, high power transistors capable of operating at high temperatures.

    # GaN based epitaxial wafer (Sapphire, SiC) Epitaxial wafers are grown by MBE or MOCVD method, one layer or multi-layer structures on Sapphire substrates, diameter up to 4 inch.

    III-Nitride(GaN, AlN, InN)Forbidden band width (light emitting and absorption) cover the ultraviolet, visible light and infrared.

    GaN can be used in many areas such as LED display, High-energy Detection and Imaging, Laser Projection Display, Power Device, etc.

    Specifications: 2 GaN Templates - - - - Item | GaN-T-N | GaN-T-S | Dimensions | 2 | Thickness | 15 m, 20 m, 30 m, 40 m | 30 m, 90 m | Orientation | C-axis(0001) 1 | Conduction Type | N-type | Semi-Insulating | Resistivity(300K) | < 0.05 cm | >106 cm | Dislocation Density | Less than 1x108 cm-2 | Substrate structure | Thick GaN on 430um or 330um Sapphire(0001) | Useable Surface Area | > 90% | Polishing | Standard: SSP Option: DSP | Package | Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere.

    | - - - - -FAQ Q: What you can supply logistics and cost? (1) We accept DHL, Fedex, TNT, UPS, EMS, SF by FOB.

    Q: What's the delivery time? (1) For the standard products such as 2inch 0.33mm wafer.

    For inventory: the delivery is 5 workdays after order.

    For customized products: the delivery is 2 or 3 workweeks after order.

    Q: How to pay? 100T/T In advance, Paypal, West Union, ,


    Company Contact:


    • Phone: 86-512-36829962

    • Address: Rm1-607,No.231,Lvdi Road, Huaqiao town, Kunshan city,jiangsu Province, Kunshan , Jiangsu , China

    • Email: Email


    Published date: March 19, 2018

    • Business Description: As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
