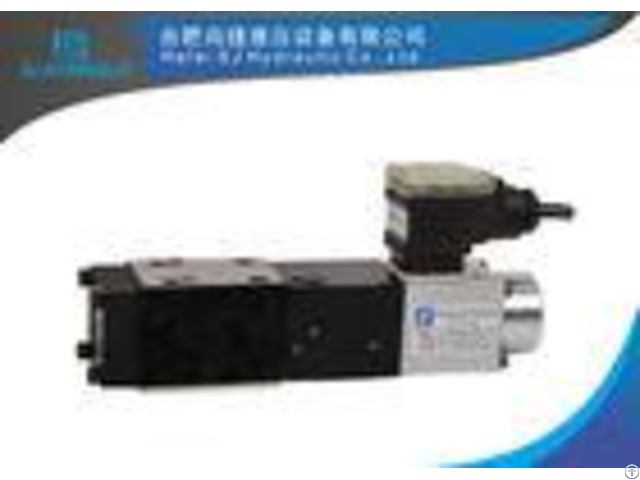

Durable Hydraulic Proportional Valve Pilot Operated With Integral Remote Pressure Transducer - China
price: check with company for price
RZGO Hydraulic Proportional Valves MA-RZGO-TERS-AERS 10, 20 pressure 315bar RZGO are 3-way hydraulic proportional pressurereducing valves, pilot operated with integral or remote pressure transducer, whichprovide pressure regulation proportionalto electronic reference signal.
They operate in association with electronicdrivers, see section, which supplythe proportional valve with proper currentto align valve regulation to the referencesignal supplied to the electronic driver - - - - Hydraulic symbols | RZGO-TERS-033 RZGO-AERS-033 | Valve model | RZGO-TERS, REZGO-AERS | Max reduced pressure (Q=10 l/min) | 100 | 210 | 315 | 350 | Max reduced pressure(Q=10l/min) [bar] | 1 or actual value at T port; (3 for/350) | Max pressure at port P [bar] | Port P=350 bar, port T=210 BAR | Minimum flow [l/min] | 2, 5 | Maximum flow [l/min] | 40 | Response time 0-100% step signal [ms] (depending on installation) | <35 | Hysteresis [% of the max pressure] | < 0, 5 | Linearity [% of the max pressure] | < 1 | Repeatability [% of the max pressure] | < 0, 5 | Thermal drift | Zero point displacement<1% at T=40 C | - - - -
Company Contact:
- Posted By: HEFEI SJ HYDRAULIC CO., LTD
- Phone: 86-551-62939227
- Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China
- Email:
- Website: https://www.orbit-hydraulicmotor.com
Published date: February 9, 2018
- Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
