Friction Saw Precision Tube Mill Galvanised Coil Automatic Control 80m Min Running - China

price: check with company for price

Friction Saw Precision Tube Mill Galvanised Coil Automatic Control 80m Min Running

Products Photos Catalog Friction Precision Photos Catalog

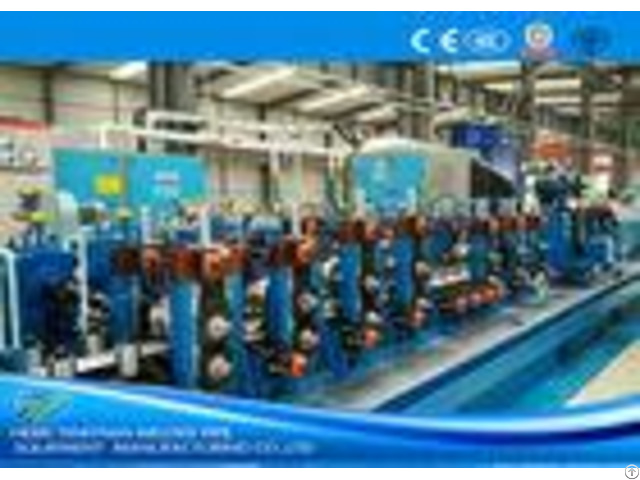

ERW89 High Precision Steel Tube Mill Production Line Highfrequency welded tube mill line is Designed to produce round tube diameter of 25.4 88.9 mm, And wall thickness of 0.8 4.0 mm.

This line utilizes roll forming to process steel strip into various shapes.

Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape.

The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speedregulating unit ensure that the production line works reliably and operates and maintains easily.

Production Process Scroll up Uncoil Flattening End Shear & Butt Welding Accumulator Forming High-frequency induction welding Removing external burr Cooling Sizing Cutting Checking & Collecting Accessing Warehouse Specifications: 1 - Raw Material: HRC, CRC, Galvanised Coil 2 - Production Range: Round Pipe: 25.4- 88.9mm; Thickness: 0.8-4.0mm Square Pipe: 20*20 - 70*70mm; Thickness: 0.8-3.0mm Rectangular: 20*30- 60*80mm; Thickness: 0.8-3.0mm 3 - H.F. Welder: GGP300Kw Solid State High Frequency Welder 4 - Line Spees: Max.

80m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 3mm 7 - Total Installation Capacity: 600kw As an CE & ISO9001: 2008 certified pipe making machine manufacturer and supplier in China.

Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other nearly 30 countries.


Company Contact:


  • Phone: 86-0311-83025332

  • Address: No.15,Shanqian Road,Economic Development Zone,Hebei,China, Shijiazhang , Hebei , China

  • Email: Email


Published date: May 17, 2018

  • Business Description: Insisting on the principal of "Quality first, Customer first" Our products are selling well in south America, Southeast Asia, Africa, Australia, Russia, South Korea etc.
