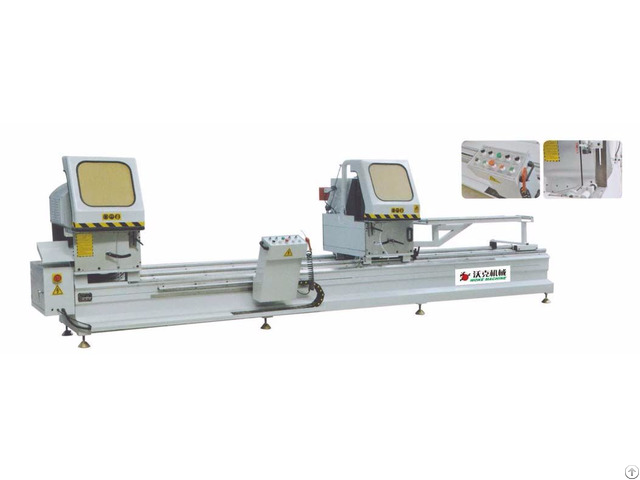

Aluminum Profile Double Head Cutting Machine - China

price: 9200.00 Dollar US$

Model Number: LJZB-500 X 4200

Features:
The machine is used for cutting aluminum alloy door and window, curtain walls.
Two blades can change angle automatically to achieve 45°, 90°.
The blades feeding adopts the linear guide rail pair, with high precision.
Input the profiles’ height, the cutting length of 45°, 90° can be displayed.
Multiple profiles’ heights can be input at one time, high efficiency.
The circuit system has the motor phase sequence and missing protection, increase the system’s security.


Technical Parameters:
Power 5.9kw
Voltage 380V, 50 Hz
Cutting Angle 90°, 45°, Work Pressure 0.6 to 0.8 Mpa
Blade Specifications ø500 x ø30, Cutting size 480-4200mm
Cutting Width x Height 240 x 120mm
Overall Dimension 5750 x 1300 x 1500mm
Weight About 1550 kg


Company Contact:


  • Phone: 17062147950

  • Address: Diaozhen Industrial Park,Jinan, China, Jinan, SD, China

  • Email: Email


Published date: October 17, 2016 - Modified date: October 17, 2016

  • Business Description: Woke Machinery Co., Ltd is the leading manufacturer and exporter for door, window, curtain wall and insulating glass equipment. The operation management of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers. We focus on technological innovation, with continuous improvement of technical research and development, and constantly develop high-end products with advanced level.
    Our machines include
    single head or two head Cutting saw
    Corner crimping machine
    End milling machine
    end crimping machine
    Punching machine
    Copy Router
    Other auxiliary machines.
    Accessory of the window & door processing machines
    We strictly enforce the ISO9001:2000 international quality certification system, have created a respected brand in the same industry. By now we have exported our window and door machines to more than 30 countries, including Russia, French, Turkey, India, Egypt etc.

    We sincerely invite all business partners to visit our factory.
