Pipe Prefabrication Production Line - China

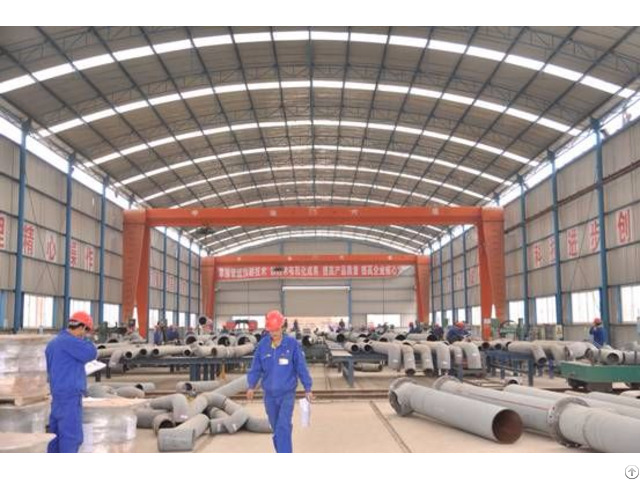

Pipe Fabrication Production Line (Fixed Type)

Model: FPPPL-24A

Performance Features：

Basic Configuration：One set of Fixed-type High Speed Pipe Cutting and Beveling Machine, One set of Roller-bench-type Pipe Plasma Cutting and Beveling Machine, One set of High Speed Pipe Cutting Band Saw Machine + Two sets of Fixed-type Pipe End Beveling Machine, many sets of Piping Prefabrication Fast Fitting-up Machine, many sets of Piping Prefabrication Automatic Welding Machine or Piping Automatic Welding Machine (cantilever type), A Set of Automatic Conveying System and a Set of Steel Structure Pipe Racks.

Production Efficiency：Excellent(Ho isting with overhead traveling crane, Beveling with High Speed Cutting and Beveling Machine and Welding with automatic welding machine)

Equipment Movability：Not Good

Application Range：Often Carrying on Piping Projects or Piping prefabrication Projects at Domestic Orders in 500KM and nearby to Coastal Harbor, Often Carrying on Piping prefabrication Projects Overseas Orders.

Technical Parameters:

Production Capacity：20-150 Thousands Diameter-Inch/ Month (or depend on workshop area and equipment config or as per request)

Pipe Diameter：DN50-600(φ60- 610mm)or as per request

Pipe Thickness：3-80MM

Conveying Speed：2-20M/Min

Beveling Speed：≤5Min / Two Bevels(DN200 SCH40)

Automatic Welding Rate：≥60%

Prefabrication Ratio: 50%~80%

Design Software: PDSOFT 3Dpiping

Management Software: PDSOFT SPFMS
