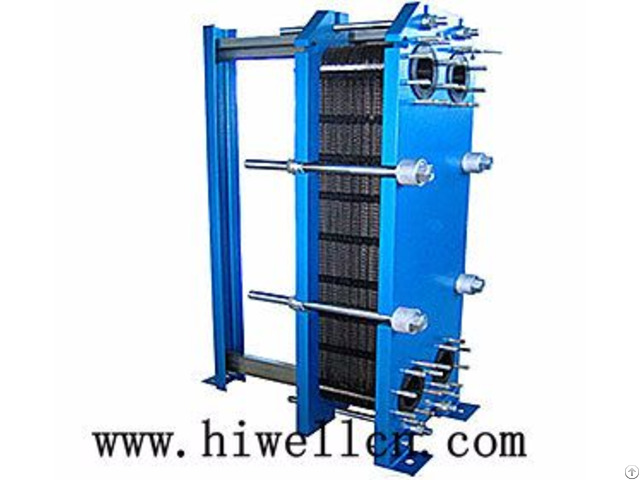

Gasketed Plate Heat Exchanger - China

price: check with company for price

This type of exchanger is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal transfer.
The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interplate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.

Main parameters
*±0.1mm accuracy of groove
*Maximum temperature can reach 180℃ *Maximum working pressure can reach 25 bar
*The diameter of porthole can reach 450mm

Typical uses
Water/Water duties
The largest part of our production heat exchangers is used for Water/Water duties, i.e. water heated or cooled with water.
*District heating
*Tap water heating
*Swimming pool heating
*Heat recovery (engine cooling)
*Temperature control of fish farms *Steel industry-furnace cooling
*Power industry-central cooling
*Chemical industry-process cooling Water/Oil duties
*Hydraulic oil cooling
*Quench oil cooling
*Cooling of motor oil in engine test beds
Water/Glycol duties
*As an intercooler in a heat pump
*Chilled water production in food factories
*Cooling of air conditioning circuits
*Solar heating systems

Spares
We have hundreds of types of plate and gasket for customers’ choices, with the most complete range, perfect quality and irresistible prices.

Plate material: SS304, 316L, Titanium, Nickel, 254Mo, Hastelloy

Plate thickness: 0.5mm, 0.6mm

Gasket material: NBR, EPDM, FPM, Silicone rubber

Food-grade material and other materials suitable for special working conditions, like elevated or low temperature conditions, are also available.

Advantages at a glance
*High Heat Transfer Efficiency
The flow turbulence inside plate heat exchanger maximizes heat transfer performance. Because of the high efficiency plate heat exchanger can handle temperature approaches of less than 1℃ (2°F).
*Compact Design
With service and maintenance space included, plate heat exchanger takes up only 20% space of what shell & tube heat exchanger takes because of the compact arrangement.
*Self-Cleaning Action
During operation, the fluid flow and the resulting turbulence can continue to remove dirt deposition from heat transfer surfaces, thus reducing fouling.
*Long Service Life
*Modularity for Flexibility
This modular exchanger obtains a variety of configurations through various combinations of framework, plates and connection to meet the needs of a wide range of applications.
*No Mixing of Medium
The seal groove of plate heat exchanger form special drainage channels with which fluids are not allowed to mix. Even if there is leakage, the media always exude outward.


Company Contact:


  • Phone: 86-532-82661679

  • Address: 1, Qutangxia Rd, Qingdao 266002, China, Qingdao , Shandong, China

  • Email: Email


Published date: December 21, 2016 - Modified date: December 21, 2016

  • Business Description: Qingdao Hiwell Machinery has been in business since 1994 for over 20 years, accumulating sales revenue of $36 million annually. We mainly supply machinery parts:
    1. Precison casting parts,
    2. Forging parts,
    3. CNC machining parts,
    4. Die casting parts,
    5. Powder metallurgy parts,
    6. Punching/stamping parts
    heat exchangers:
    1. Gasketed plate heat exchanger,
    2. Brazed plate heat exchanger,
    3. Semi-welded plate heat exchanger,
    4. Fully welded plate heat exchanger,
    5. Plate & shell heat exchanger,
    6. Plate & frame heat exchanger,
    7. Tube & shell heat exchanger
    and various rigging hardwares.

    1) Advanced machinery equipment to satisfy strict requirements for different machinery parts. Experienced engineers to improve drawing and process, saving customers’ cost at the most extent.
    2) Rigging hardware all in readiness for your one-stop purchasing.
    3) Practical and cost-efficient heat exchangers are designed individually to your applications. There are also hundreds of types of plates and gaskets for customers’ choices.

    Machinery Parts
    .More than 20 years’ manufacturing experience
    .Newly expanded factory covering 35,000 m2, with advanced facilities and 1000 staff members
    .OEM and customized services offered
    .20 R&D members and specilists who have professional experience in the industry.

    Rigging Hardware
    .We have our own factory for ratchet tie down and slings.
    .Standing partnership with about 200 suppliers
    .Full range of products for your one-stop purchasing

    Gasketed plate heat exchanger
    .Individually designed
    .ASME Certificated
    .According to working conditions, we also provide semi-welded, fully welded, and tube & shell heat exchanger.
    .Hundreds of types of plates and gaskets for customers’ choices
