Seam Welder Metal Bellow Expansion Joint Forming Machine - China

price: 7000.00 Dollar US$

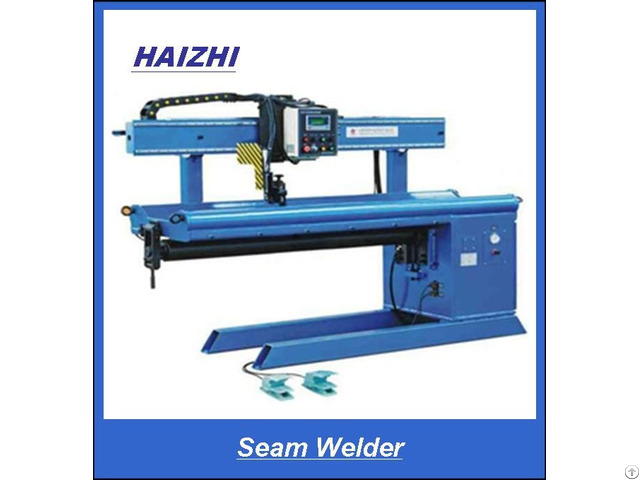

Seam Welder Metal Bellow Expansion Joint Forming Machine

Products Photos Catalog Seam Welder Metal Photos Catalog

Straight seam automatic seam welder series are mainly used for welding longitudinal seam of thin sheet.

It adopts cantilever type, and it is mainly composed of frame, fingers-type clamping unit, water-cooling mandrel, travelling carriage, crossing slider, wire feeder and torch holder.

Fingers-type clamping unit owns special push from air cell, pressure of air cell is adjusted between 0 to 7kg/cm2, and the distance of two banks of fingers between 5 to 20mm to satisfy various welding seam width; Water-cooling mandrel is designed according the work pieces' diameter and length to ensure the strength.

The top of mandrel is inserted water-cooling insert with groove for heat-sink cooling.

It is adjustable in mandrel height to handle various material thicknesses.

Beam is fitted with travel carriage which is moved straightly by track and driving unit, variable speed.

Model ZF-500 ZF-1000 ZF-1500

Voltage/frequency 220v/50Hz 220v/50Hz 220v/50Hz

Pressure(Mpa) 0.5 0.5 0.5

Max effecctive travel distance 550mm 1000mm 1500mm

Welding speed(mm/min) 1500-2000 1500-2000 1500-2000


Company Contact:


  • Phone: 863357186005

  • Address: 16yongdinghe road, Qinhuangdao , hebei , China

  • Email: Email


Published date: August 2, 2016

  • Business Description: Qinhuangdao Haizhi Technology Co., LTD. is a manufacturer of over 30 kinds of products including Automatic expansion joint forming machine, Metal bellow forming machine, Plate bending machine, Seam welder, Spring bellows machine, Expansion joint and so on.

    Company is located in the state level Technical and Economic Development Zone --- Qinhuangdao E.T.D.

    Z that enjoys good location and convenient transportation.

    Company adheres to the customers' requirements, focusing on the development of foreign and domestic markets.

    Customers speak highly of the company because of the high quality service.

    It improves the innovation capacity based on customers' demand and transform advanced technology into competitive advantages and business success.

    Our company has passed the ISO9001 quality level system authentication and CE attestation.
