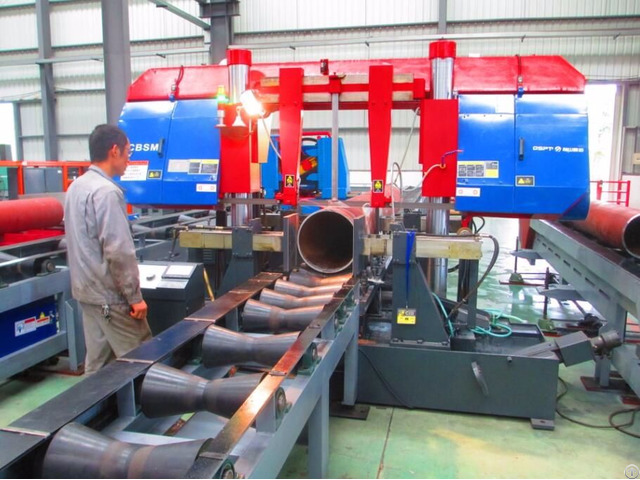

Pipe Prefabrication Automatic Band Saw Cutting - China
price: contact company for price
Structure: horizontal, with one main column+ one auxiliary column
Pipe diameter applicable: DN50-600(φ60-610); DN150-800(φ159-813)mm
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Feeding speed: stepless speed adjustment
Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.
Band saw tension: tensioning & loosen automatically by hydraulic
Cooling system: Built in coolant pump
Speed of the band saw: 17-85m/min speed control by frequency variation
Size of the band saw: 7400*54*1.6; 8050*67*1.6mm
Dimension of machine: 3750*2300*210mm; 3925*1660*2320mm
Weight of machine: 5000KGS;7500KGS (±5%)
Length-measuring system: a mechanical Length-measuring system could be provided so as to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system.
Measuring Length:1m /once
Control System:PLC Controlling.
Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.
Company Contact:
- Posted By: Shanghai Qianshan Piping Technology Co.,Ltd
- Phone: 8615221220112
- Address: No.866, Xinyan Road, Maogang Town, Songjiang District, Shanghai , Shanghai , China
- Email:
- Website: http://www.qiansh.com/
Published date: August 30, 2016
- Business Description: QSPT is the leading manufacturer and the most professional & innovation ability provider of integrated / total solutions for automation piping spool prefabrication, also is the unique provider of professional Piping Plant Design Software & Intelligent Management Software System and Piping Equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas, Petrochemical, Petroleum, Chemical Industry, Power Plant, Offshore & Marine Engineering, Shipbuilding Industry, Aerospace, Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework Construction and install Fields etc.
